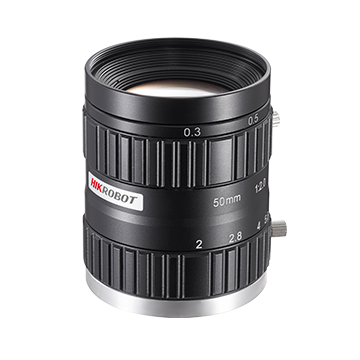

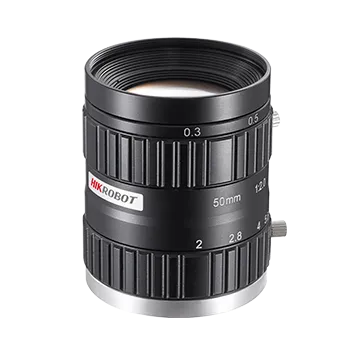

C-Mount Lens, 50mm, F2.0, 4/3″, 10MP
High resolution and excellent image uniformity
- High resolution with excellent image uniformity.
- F2.0 maximum aperture with a 4/3″ image circle.
- Low distortion improves measurement accuracy.
- High peripheral brightness ratio ensures consistent image brightness.
Camera Solutions
C-Mount Lens, 50mm, F2.0, 4/3″, 10MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number SA5020M-10MP. Key data: focal length 50 mm, f number F2.0 to F22, mount C-mount, image size Ø23 mm (4/3"). Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Adapter Ring M42×1.0-F T34.5 (M42x1.0-F T34.5)
- Adapter Ring M58×0.75-C T6.02 (M58x0.75-C T6.02)
- Adapter Ring M58×0.75-F T35 (M58x0.75-F T35)
- C-Mount Lens, 12mm, F2.0, 4/3″, 10MP (SA1220M-10MP)
- C-Mount Lens, 12mm, F2.4, 1.2″, 25MP (MVL-KF1224M-25MP)
- C-Mount Lens, 12mm, F2.4, 1/1.8″, 10MP (MVL-HF1224M-10MP)
- C-Mount Lens, 12mm, F2.4, 2/3″, 5MP (MVL-MF1224M-5MPE)
- C-Mount Lens, 12mm, F2.8, 1.1″, 12MP (MVL-KF1228M-12MPE)
Description
F2.0 maximum aperture with a 4/3″ image circle. Low distortion improves measurement accuracy. High peripheral brightness ratio ensures consistent image brightness.
Product Highlights
High resolution with excellent image uniformity. — F2.0 maximum aperture with a 4/3″ image circle. — Low distortion improves measurement accuracy. — High peripheral brightness ratio ensures consistent image brightness.
Specifications
| Product Model | SA5020M-10MP |
|---|---|
| Type | C-Mount Lens, 50mm, F2.0, 4/3″, 10MP |
| Focal Length | 50 mm |
| F Number | F2.0 to F22 |
| Image Size | Ø23 mm (4/3") |
| Minimum Object Distance | 0.3 m |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M40.5 × 0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø44.6 mm × 67.8 mm (Ø1.8" × 2.7") |
| Weight | 165 g (0.4 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Field Of View 2 | D (22.6 mm): 25.9° H (18.13 mm): 20.9° V (13.6 mm): 15.7° |
| Optical Distortion | –0.14% |
