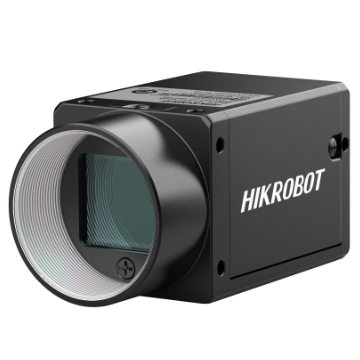

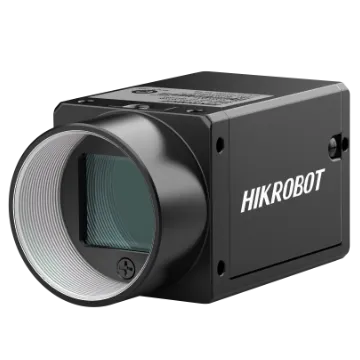

Area Scan Camera, 5MP, GMAX3405, 1-link CXP-12, C-mount, without fan, Color

Name: Area Scan Camera, 5MP, GMAX3405, 1-link CXP-12, C-mount, without fan, Color
Brand: HIKROBOT
SKU: MV-CH050-90Y1C-NN

Resolution of 2448 × 2048, pixel size of 3.4 µm × 3.4 µm.

Send inquiry

Download datasheet (PDF)

Highlights

Resolution of 2448 × 2048 with 3.4 µm × 3.4 µm pixels.
A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality.
Transmits data over a CXP-12 interface.
Offers Off, Once, and Continuous exposure modes.
Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH050-90Y1C-NN Category: Area & Line Scan Cameras

Area Scan Camera, 5MP, GMAX3405, 1-link CXP-12, C-mount, without fan, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH050-90Y1C-NN. Key data: resolution 2448 × 2048, sensor type CMOS, global shutter, max frame rate 164 fps @ 2448 × 2048 Bayer GB 8, data interface CoaXPress with Micro-BNC interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. Transmits data over a CXP-12 interface. Offers Off, Once, and Continuous exposure modes. Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.

Area Scan Camera, 5MP, GMAX3405, 1-link CXP-12, C-mount, without fan, Color (MV-CH050-90Y1C-NN) at a glance: 2448 × 2048 resolution, Gpixel GMAX3405 sensor, 2/3" sensor format, 3.4 μm × 3.4 μm pixel size, up to 164 fps, Color output, CoaXPress with Micro-BNC interface interface and C-mount lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Resolution of 2448 × 2048 with 3.4 µm × 3.4 µm pixels. — A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. — Transmits data over a CXP-12 interface. — Offers Off, Once, and Continuous exposure modes. — Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.

Specifications

Product Model	MV-CH050-90Y1C-NN
Type	Area Scan Camera, 5MP, GMAX3405, 1-link CXP-12, C-mount, without fan, Color
Sensor Type	CMOS, global shutter
Sensor Model	Gpixel GMAX3405
Pixel Size	3.4 μm × 3.4 μm
Sensor Size	2/3"
Resolution	2448 × 2048
Max Frame Rate	164 fps @ 2448 × 2048 Bayer GB 8
Dynamic Range	59.3 dB
SNR	39.2 dB
Gain	0 dB to 6.1 dB
Exposure Time	2 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Bayer GB 8/10/12
Mono Color	Color
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	CoaXPress with Micro-BNC interface

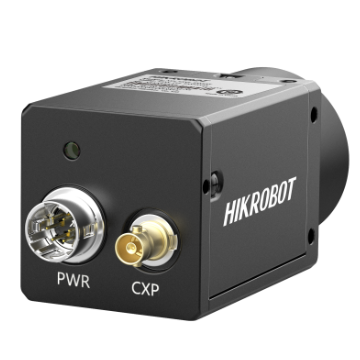

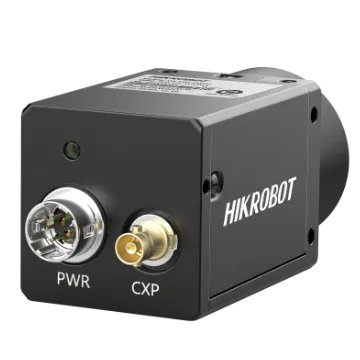

Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2)
Power Supply	9 VDC to 24 VDC, supports PoCXP
Lens Mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 90 g (0.2 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with CoaXPress Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	CoaXPress, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 3.5 W @ 12 VDC
