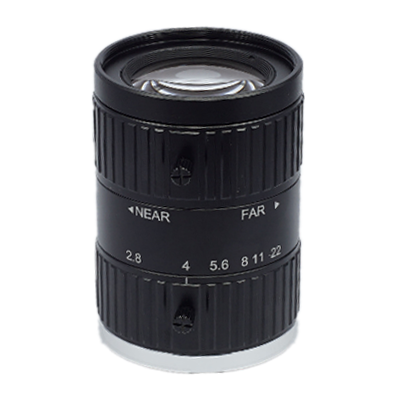

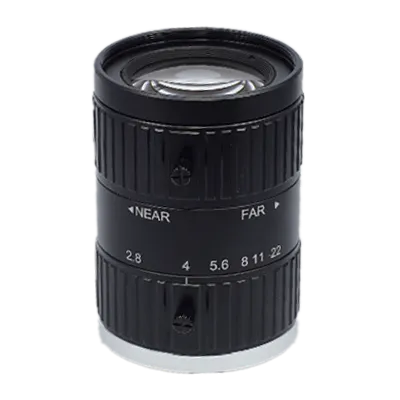

C-Mount Lens, 75mm, F2.8, 1″, 12MP
Provides high resolution and consistency of image clarity.
- High resolution with consistent image clarity.
- Low distortion and high peripheral brightness ratio.
- Maximum image size Ø16 mm.
- Excellent optical properties maintained across different object distances.
Camera Solutions
C-Mount Lens, 75mm, F2.8, 1″, 12MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-KF7528M-12MP. Key data: focal length 75 mm, f number F2.8 to F22, mount C-mount, image size Ø16 mm (1"). Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Adapter Ring M42×1.0-F T34.5 (M42x1.0-F T34.5)
- Adapter Ring M58×0.75-C T6.02 (M58x0.75-C T6.02)
- Adapter Ring M58×0.75-F T35 (M58x0.75-F T35)
- C-Mount Lens, 12mm, F2.0, 4/3″, 10MP (SA1220M-10MP)
- C-Mount Lens, 12mm, F2.4, 1.2″, 25MP (MVL-KF1224M-25MP)
- C-Mount Lens, 12mm, F2.4, 1/1.8″, 10MP (MVL-HF1224M-10MP)
- C-Mount Lens, 12mm, F2.4, 2/3″, 5MP (MVL-MF1224M-5MPE)
- C-Mount Lens, 12mm, F2.8, 1.1″, 12MP (MVL-KF1228M-12MPE)
Description
Low distortion and high peripheral brightness ratio. Maximum image size Ø16 mm. Excellent optical properties maintained across different object distances.
Product Highlights
High resolution with consistent image clarity. — Low distortion and high peripheral brightness ratio. — Maximum image size Ø16 mm. — Excellent optical properties maintained across different object distances.
Specifications
| Product Model | MVL-KF7528M-12MP |
|---|---|
| Type | C-Mount Lens, 75mm, F2.8, 1″, 12MP |
| Focal Length | 75 mm |
| F Number | F2.8 to F22 |
| Image Size | Ø16 mm (1") |
| Minimum Object Distance | 0.5 m |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M39 × 0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø42 mm × 60.3 mm (Ø1.7'' × 2.4'') |
| Weight | 187 g (0.4 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Field Of View 2 | D (15.86 mm): 12.2° H (12.45 mm): 9.8° V (9.83 mm): 7.3° |
| Optical Distortion | 0.75% |
