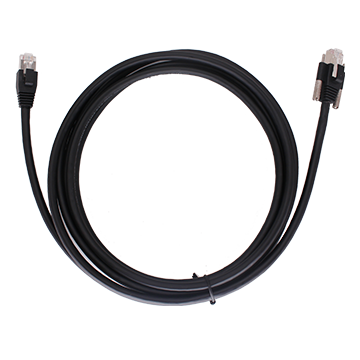

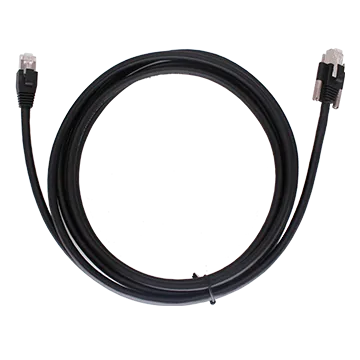

Fiber Optic Cable, RJ45 (with locking stud) to RJ45, 3 m, High-Flex
RJ45 high-flex 10 GigE cable can be used for data transmission of 10 GigE interface cameras, and it is available in various lengths.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Fiber Optic Cable, RJ45 (with locking stud) to RJ45, 3 m, High-Flex is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-AC10G-RJ45s-RJ45-HF-3m. Key data: certification RoHS, UL. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Fiber Optic Cable, LC (2-core) to LC (2-core), 10 m (MV-AC10G-2LC-2LC-ST-10m)
- Fiber Optic Cable, LC (2-core) to LC (2-core), 3 m (MV-AC10G-2LC-2LC-ST-3m)
- Fiber Optic Cable, LC (2-core) to LC (2-core), 5 m (MV-AC10G-2LC-2LC-ST-5m)
- Fiber Optic Cable, RJ45 (with locking stud) to RJ45, 10 m, High-Flex (MV-AC10G-RJ45s-RJ45-HF-10m)
- Fiber Optic Cable, RJ45 (with locking stud) to RJ45, 5 m, High-Flex (MV-AC10G-RJ45s-RJ45-HF-5m)
- Fiber Optic Cable, RJ45 (with locking stud) to RJ45, 10 m (MV-AC10G-RJ45s-RJ45-ST-10m)
- Fiber Optic Cable, RJ45 (with locking stud) to RJ45, 3 m (MV-AC10G-RJ45s-RJ45-ST-3m)
- Fiber Optic Cable, RJ45 (with locking stud) to RJ45, 5 m (MV-AC10G-RJ45s-RJ45-ST-5m)
Product Highlights
RJ45 High Flex 10 GigE Cables carry data for 10 GigE cameras; available in multiple lengths.
Specifications
| Product Model | MV-AC10G-RJ45s-RJ45-HF-3m |
|---|---|
| Type | Fiber Optic Cable, RJ45 (with locking stud) to RJ45, 3 m, High-Flex |
| End A Connector | RJ45 (with locking stud) |
| End B Connector | RJ45 |
| Cable Diameter | 7.0 mm |
| Length | 3 m |
| Cable Mechanical | (26#*1P+AL)*4C+AB |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | >750 cycles |
| Min Bending Radius | 84 mm |
| Applicable Scenario | Drag chains |
| Max Voltage | 30 VDC |
| Working Temperature | –20 °C to 75 °C (–4 °F to 167 °F) |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Max U Type Bending Cycles | 5 million |
