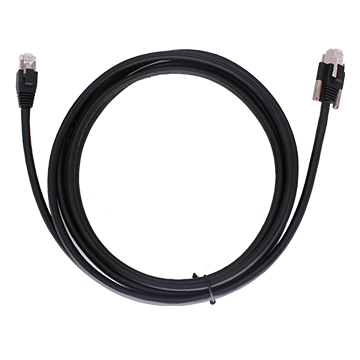

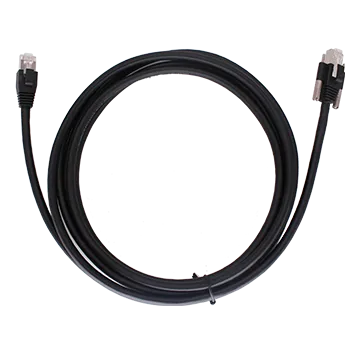

Fiber Optic Cable, RJ45 (with locking stud) to RJ45, 5 m, High-Flex
RJ45 high-flex 10 GigE cable can be used for data transmission of 10 GigE interface cameras, and it is available in various lengths.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Product Highlights
RJ45 High Flex 10 GigE Cables carry data for 10 GigE cameras; available in multiple lengths.
Specifications
| Product Model | MV-AC10G-RJ45s-RJ45-HF-5m |
|---|---|
| Type | Fiber Optic Cable, RJ45 (with locking stud) to RJ45, 5 m, High-Flex |
| End A Connector | RJ45 (with locking stud) |
| End B Connector | RJ45 |
| Cable Diameter | 7.0 mm |
| Length | 5 m |
| Cable Mechanical | (26#*1P+AL)*4C+AB |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | >750 cycles |
| Min Bending Radius | 84 mm |
| Applicable Scenario | Drag chains |
| Max Voltage | 30 VDC |
| Working Temperature | –20 °C to 75 °C (–4 °F to 167 °F) |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Max U Type Bending Cycles | 5 million |
