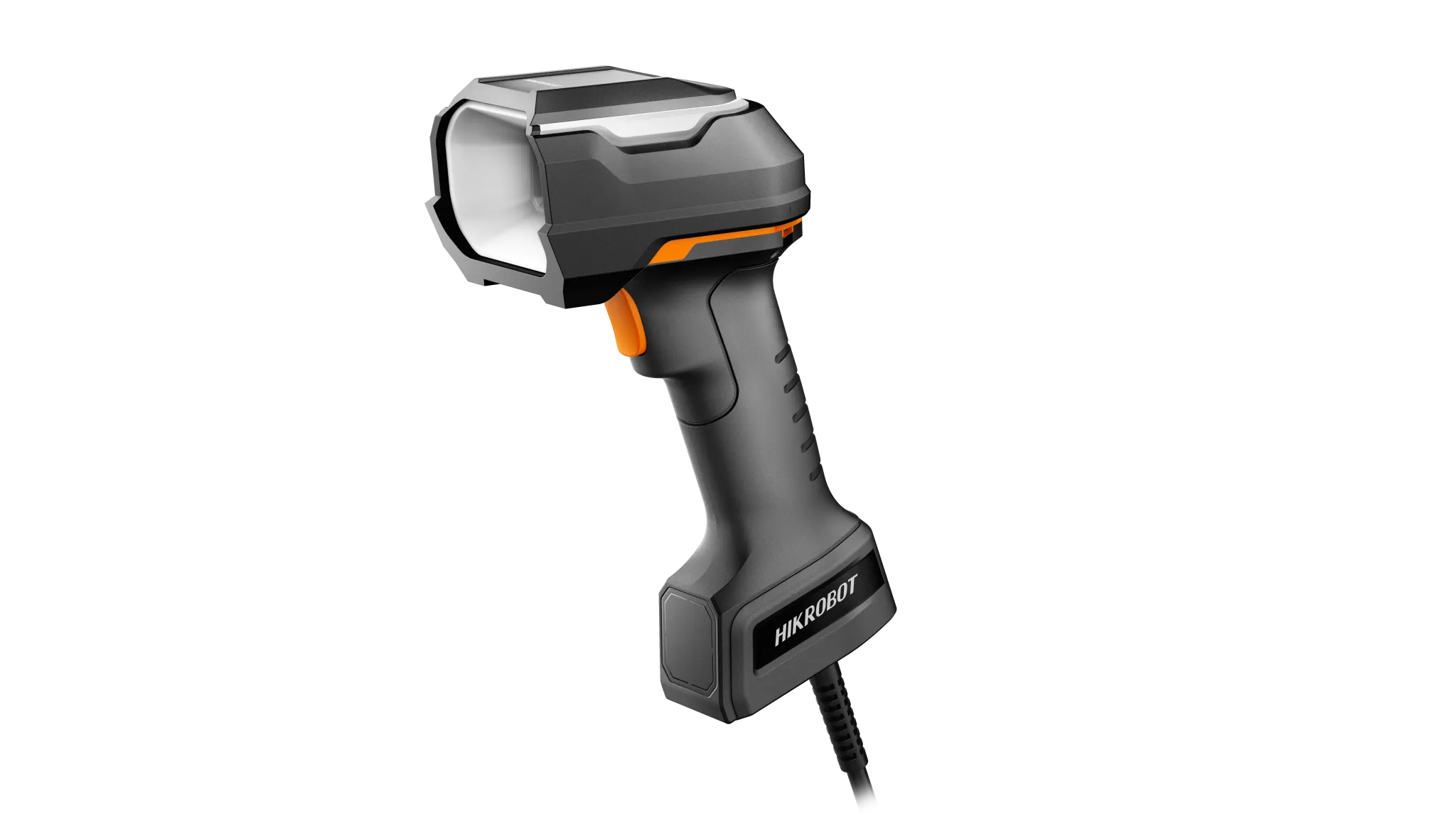

Ultra-ragged Wired Handheld Code Reader
Built-in code reading algorithm and illumination system for decoding codes with spots, defects and low contrast ratio.
Camera Solutions
Beschreibung
Ultra-small-code and DPM recognition models include a micro-code lens with a minimum module size of 0.04 mm and a zoom lens for high-speed, large-depth-of-field reading. Four selectable lighting modes: direct, polarised, diffuse-reflection, and bi-directional. Rugged and durable: withstands 2.5 m drops (50 times), rolling from 0.5 m (20 000 times), chemical corrosion, and strong electrostatic interference. OLED display for quick device and code-reading status at a glance. Smart-tune and quick-config tools speed up code-parameter setup. Speaks multiple protocols: TCP, FTP, UDP, USB, PROFINET, EtherNet/IP, Modbus, Serial, and SmartSDK.
Product Highlights
Built-in code-reading algorithm and illumination handle codes with spots, defects, and low contrast. — Ultra-small-code and DPM recognition models include a micro-code lens with a minimum module size of 0.04 mm and a zoom lens for high-speed, large-depth-of-field reading. — Four selectable lighting modes: direct, polarised, diffuse-reflection, and bi-directional. — Rugged and durable: withstands 2.5 m drops (50 times), rolling from 0.5 m (20 000 times), chemical corrosion, and strong electrostatic interference. — OLED display for quick device and code-reading status at a glance. — Smart-tune and quick-config tools speed up code-parameter setup. — Speaks multiple protocols: TCP, FTP, UDP, USB, PROFINET, EtherNet/IP, Modbus, Serial, and SmartSDK.
Specifications
| Product Model | MV-IDH9000/13HHD/16RP/L |
|---|---|
| Type | Ultra-ragged Wired Handheld Code Reader |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ISBN, ISSN, ITF25, ITF14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec Stacked barcode: PDF417 |
| Min Accuracy | 1.57 mil |
| Sensor Type | CMOS |
| Resolution | 1280 × 1024 |
| Depth Of Field | Code128 (3 mil): 0 mm to 100 mm1 Code 128 (10 mil): 0 mm to 250 mm1 Code 128 (20 mil): 0 mm to 350 mm1 Code 39 (5 mil): 0 mm to 150 mm1 Data Matrix (5 mil): 5 mm to 79 mm QR Code (20 mil): 0 mm to 250 mm1 |
| Field Of View | Wide-angle lens: horizontal 43.6°, vertical 35.5° Telephoto lens: horizontal 10.4°, vertical 8.3° |
| Detection Angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol Contrast | 20% |
| Communication Protocol | SmartSDK, UDP, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, ModBus |
| Data Interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal |
| Power Supply | DC terminal: 12 VDC PoE3: 48 V |
| Current Consumption | DC terminal: 0.7 A (max.), 0.47 A (typical) PoE3: 0.2 A (max.), 0.14 A (typical) |
| Focal Length | Wide-angle lens: 4.3 mm Telephoto lens: 16 mm |
| Ambient Illumination | 0 lux to 100000 lux |
| Light Source | Diffused reflection lighting (red LED), bi-directional lighting (red LED), direct lighting (white LED), polarized lighting (white LED) Smart scanning mode is set by default, and auto polling of lights is supported according to the code reading scene. |
| Aiming System | 650 nm laser (red light) + LED (green light) |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 74 mm × 109.9 mm × 227.1 mm (2.9" × 4.3" × 8.9") |
| Weight | Approx. 490 g (1.1 lb.) (without cable) |
| Ingress Protection | IP67 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Laser Safety Class | Laser 2 |
| Wavelength | 650 nm |
| Pulse Width | 6.6 ms |
| Maximum Power | 1 mW |
| Client Software | IDMVS |
| Certification | CE, KC |
| Drop Height | Dropping: 2.5 m, 50 times Rolling: 0.5 m, 20000 times |
| Static Electricity Resistant | ± 25 kV (air discharge), ± 10 kV (contact discharge or indirect discharge) |
| Display | 0.96" OLED display |
| Chemically Resistant | ISO 16750 |
