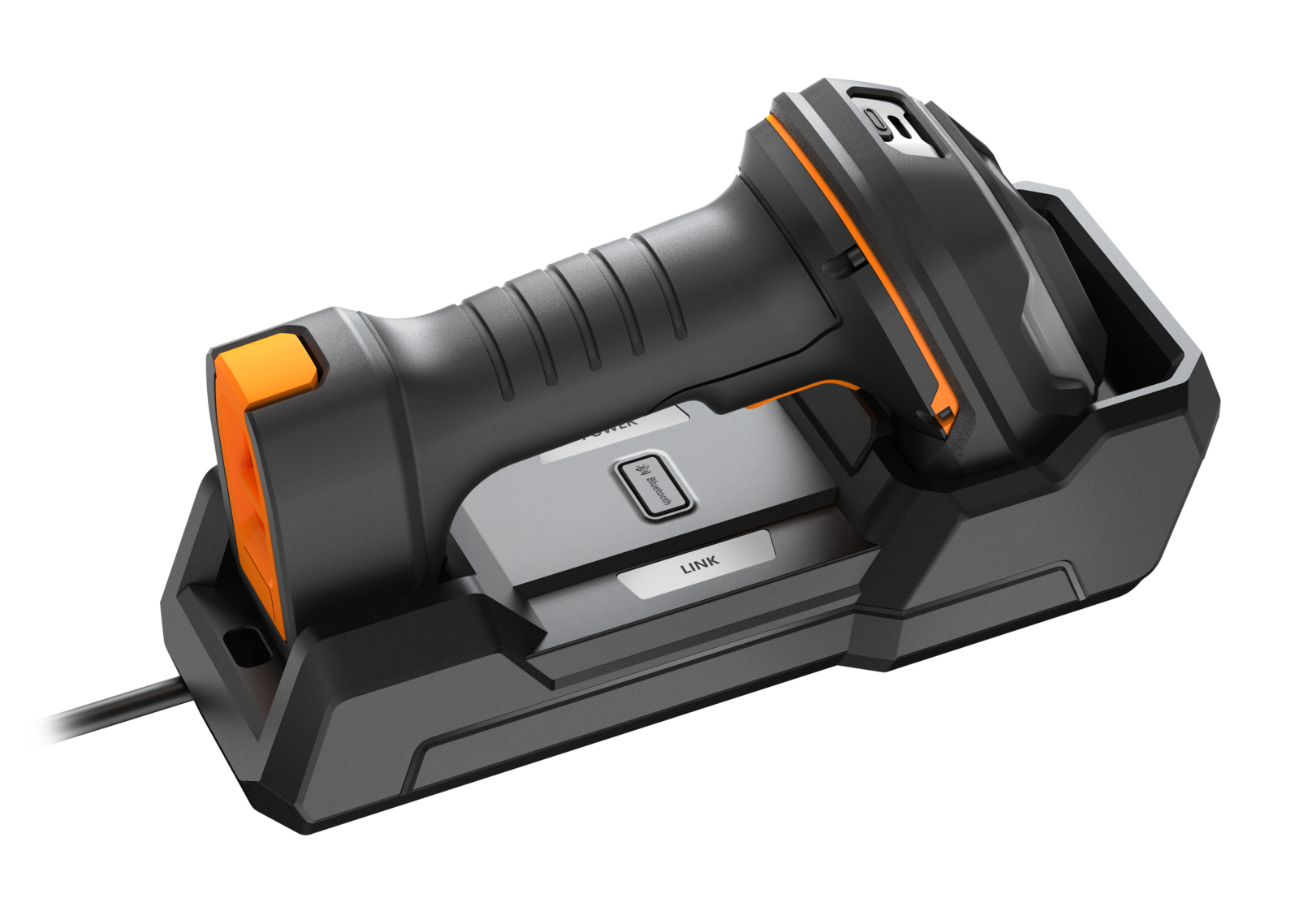

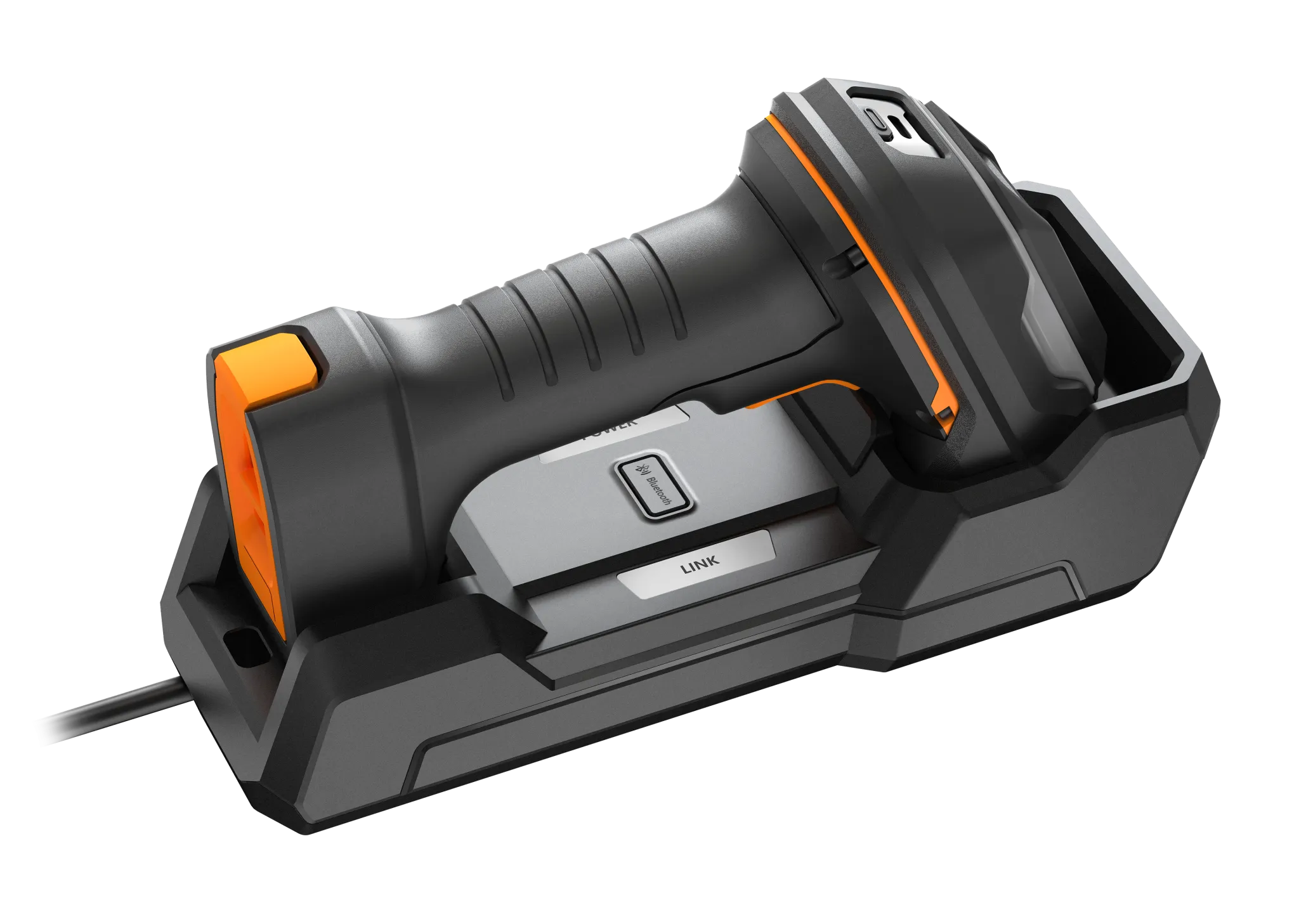

Ultra-ragged Wireless Handheld Code Reader Package
Built-in code reading algorithm and illumination system for decoding codes with spots, defects and low contrast ratio.
Camera Solutions
Beschreibung
Ultra-small-code and DPM recognition models include a micro-code lens with a minimum module size of 0.04 mm and a zoom lens for high-speed, large-depth-of-field reading. Equipped with a 3D sensor for height-map acquisition. Bluetooth 5.0 provides a stable connection up to 100 m in open areas, with mobile-device support for convenient operation. A 4650 mAh battery gives long standby time. Wireless charging eliminates electrode wear and metal-swarf interference. Four selectable lighting modes: direct, polarised, diffuse-reflection, and bi-directional.
Product Highlights
Built-in code-reading algorithm and illumination handle codes with spots, defects, and low contrast. — Ultra-small-code and DPM recognition models include a micro-code lens with a minimum module size of 0.04 mm and a zoom lens for high-speed, large-depth-of-field reading. — Equipped with a 3D sensor for height-map acquisition. — Bluetooth 5.0 provides a stable connection up to 100 m in open areas, with mobile-device support for convenient operation. — A 4650 mAh battery gives long standby time. — Wireless charging eliminates electrode wear and metal-swarf interference. — Four selectable lighting modes: direct, polarised, diffuse-reflection, and bi-directional.
Specifications
| Product Model | MV-IDH9000B/13DP/04RP/US |
|---|---|
| Type | Ultra-ragged Wireless Handheld Code Reader Package |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec Stacked barcode: PDF417 |
| Min Accuracy | 3 mil |
| Sensor Type | CMOS |
| Resolution | 1280 × 1024 |
| Depth Of Field | Code128 (3 mil): 0 mm to 100 mm Code 128 (10 mil): 0 mm to 250 mm Code 128 (20 mil): 0 mm to 350 mm Code 39 (5 mil): 0 mm to 150 mm Data Matrix (5 mil): 5 mm to 79 mm QR Code (20 mil): 0 mm to 250 mm |
| Field Of View | Horizontal 43.6°, vertical 35.5° |
| Detection Angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol Contrast | 20% |
| Communication Protocol | SmartSDK, USB (HID/CDC), Bluetooth, Serial1 |
| Data Interface | USB 2.0, DC terminal |
| Power Supply | DC terminal: 12 VDC to 24 VDC |
| Current Consumption | 1.1 A (max.), 0.15 A (during standby) |
| Ambient Illumination | 0 lux to 100000 lux |
| Light Source | Diffused reflection lighting (red LED), bi-directional lighting (red LED), direct lighting (white LED), polarized lighting (white LED) Smart scanning mode is set by default, and auto polling of lights is supported according to the code reading scene. |
| Aiming System | 650 nm laser (red light) |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 257.9 mm × 99 mm × 67.6 mm (10.2" × 3.9" × 2.7") |
| Weight | Approx. 380 g (0.8 lb.) |
| Ingress Protection | IP65 |
| Temperature | 5% RH to 95% RH (no condensation) |
| Humidity | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Laser Safety Class | Laser 1 |
| Wavelength | 650 nm |
| Pulse Width | 6.6 ms |
| Maximum Power | 0.39 mW |
| Client Software | IDMVS |
| Certification | CE, KC |
| Communication Mode | Bluetooth BT 5.0, BLE |
| Wireless Range | 100 m (open area) |
| Battery | 4650 mAh |
| Charging Time | 6 h |
| Endurance | 14 h (interval scanning, once in 20 seconds) |
| Drop Height | Dropping: 2.5 m, 50 times Rolling: 0.5 m, 20000 times |
| Static Electricity Resistant | ± 25 kV (air discharge), ± 10 kV (contact discharge or indirect discharge) |
| Display | 0.96" OLED display |
| Chemically Resistant | ISO 16750 |
| Max Current | 1.5 A |
