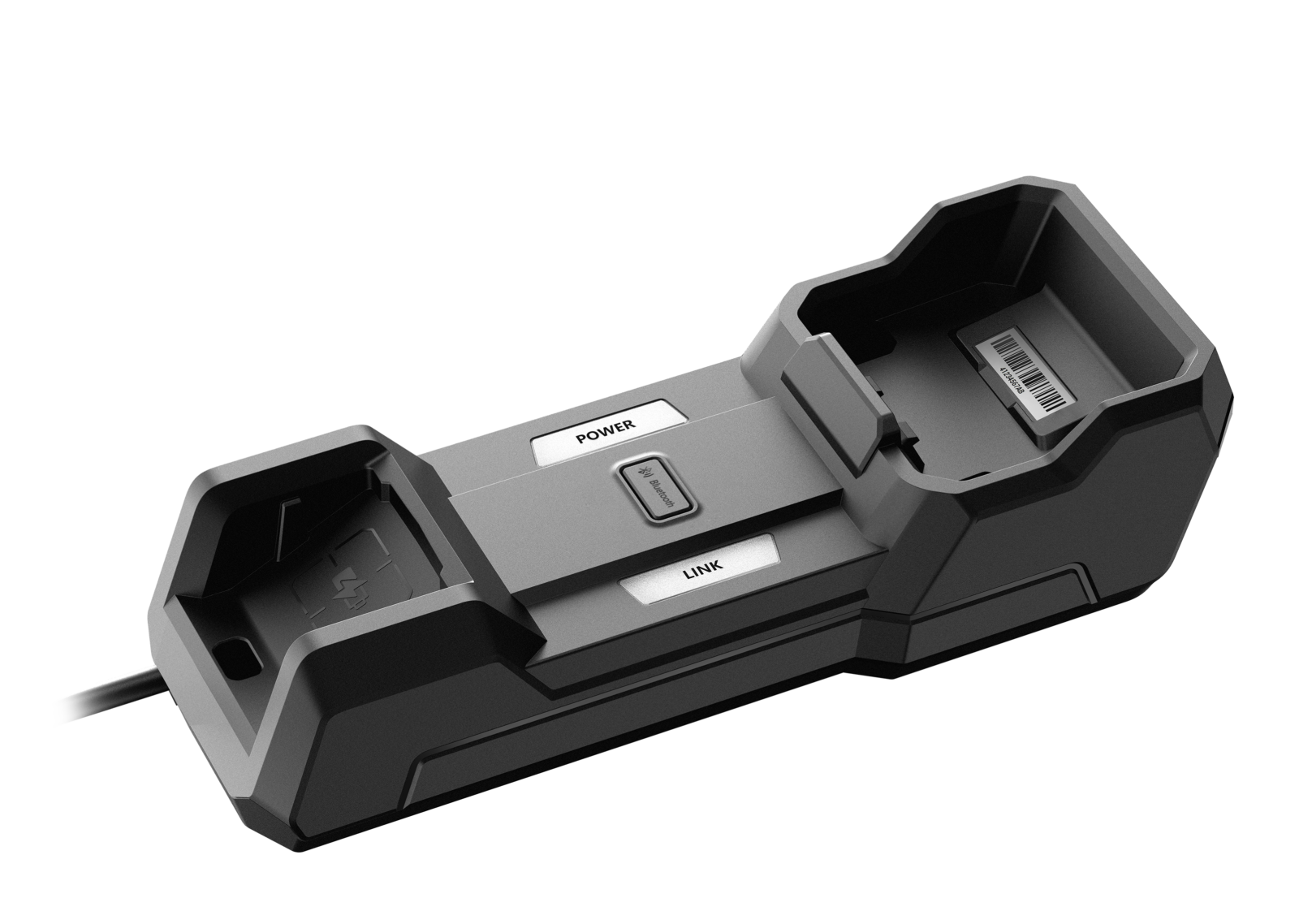

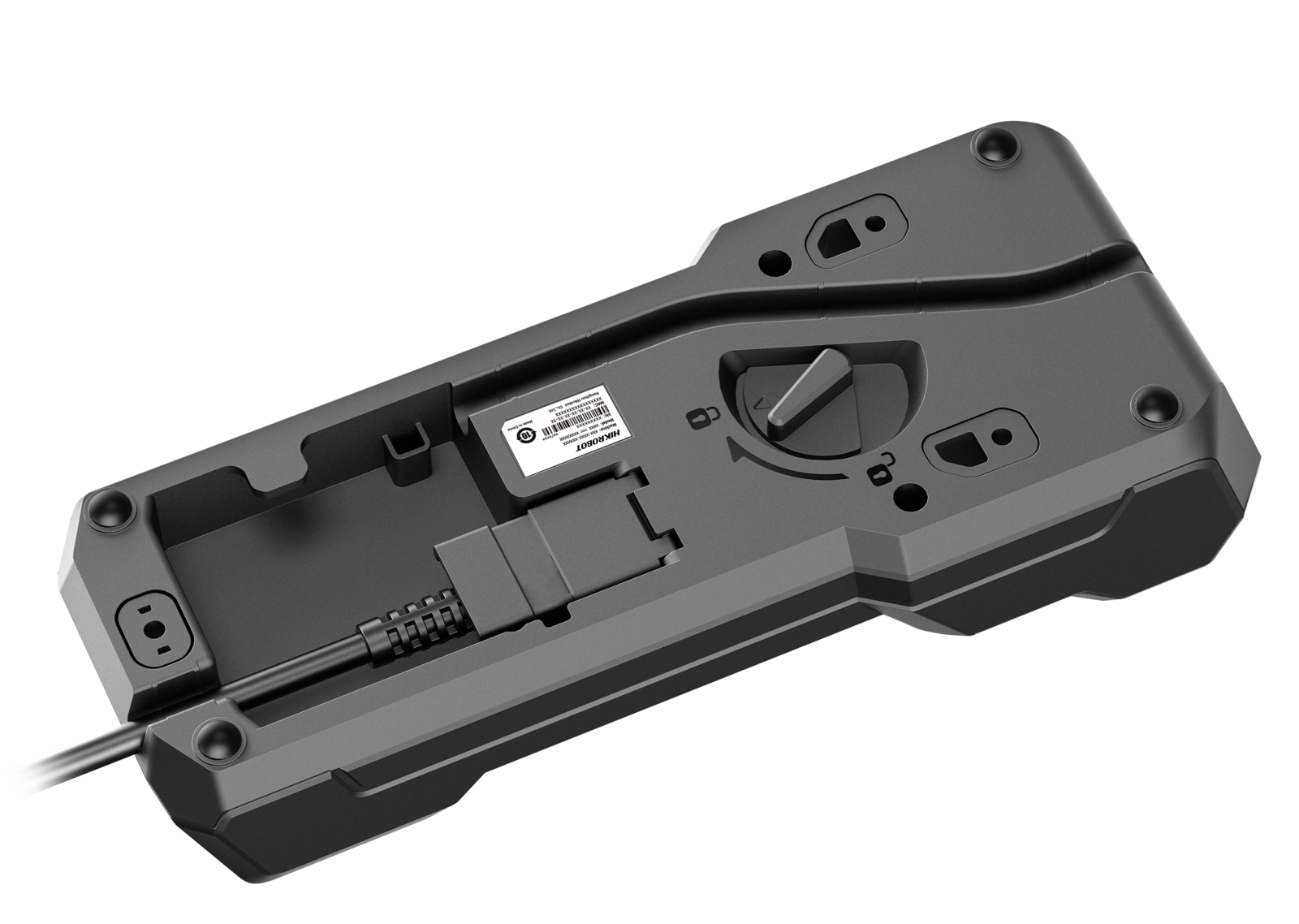

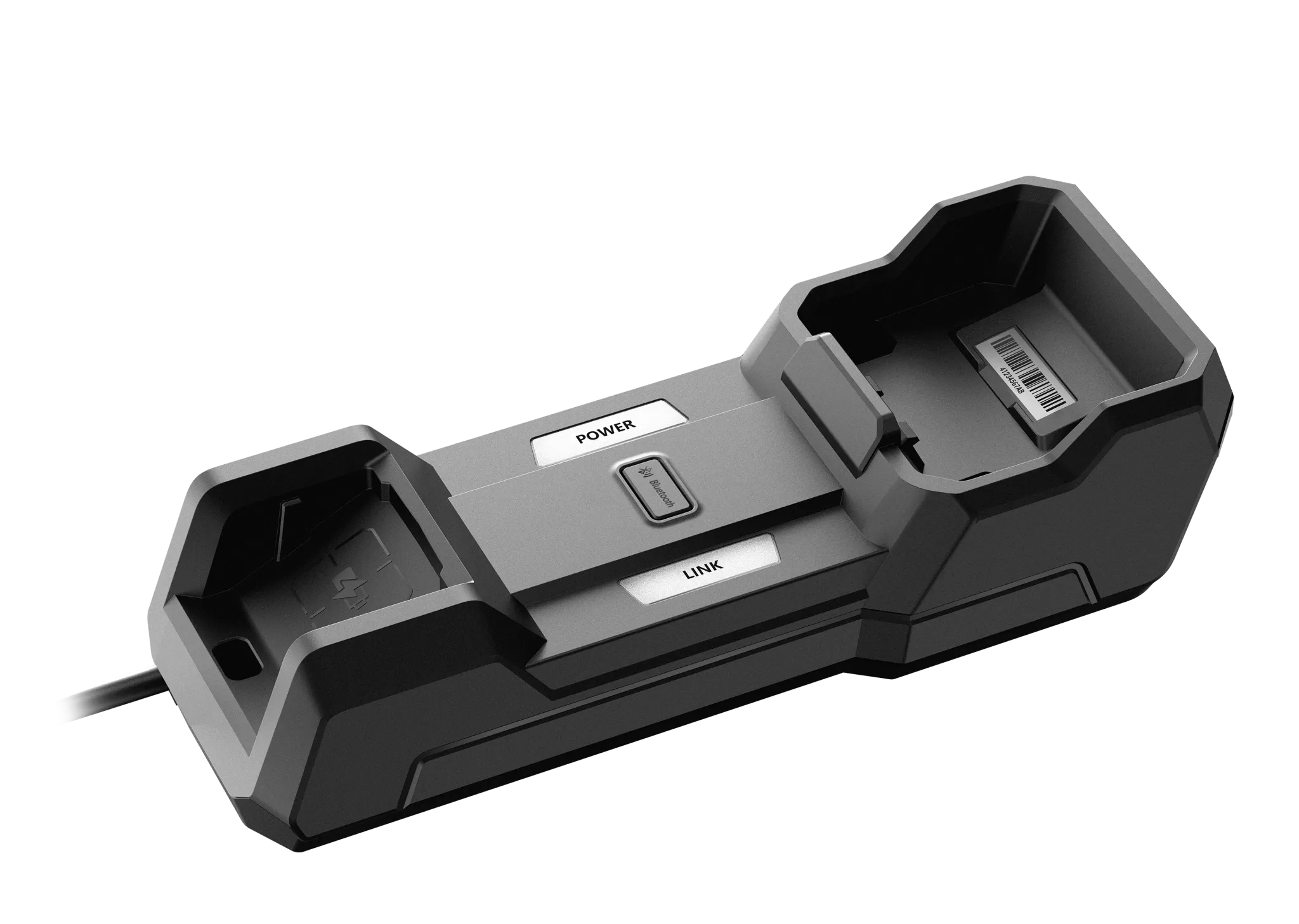

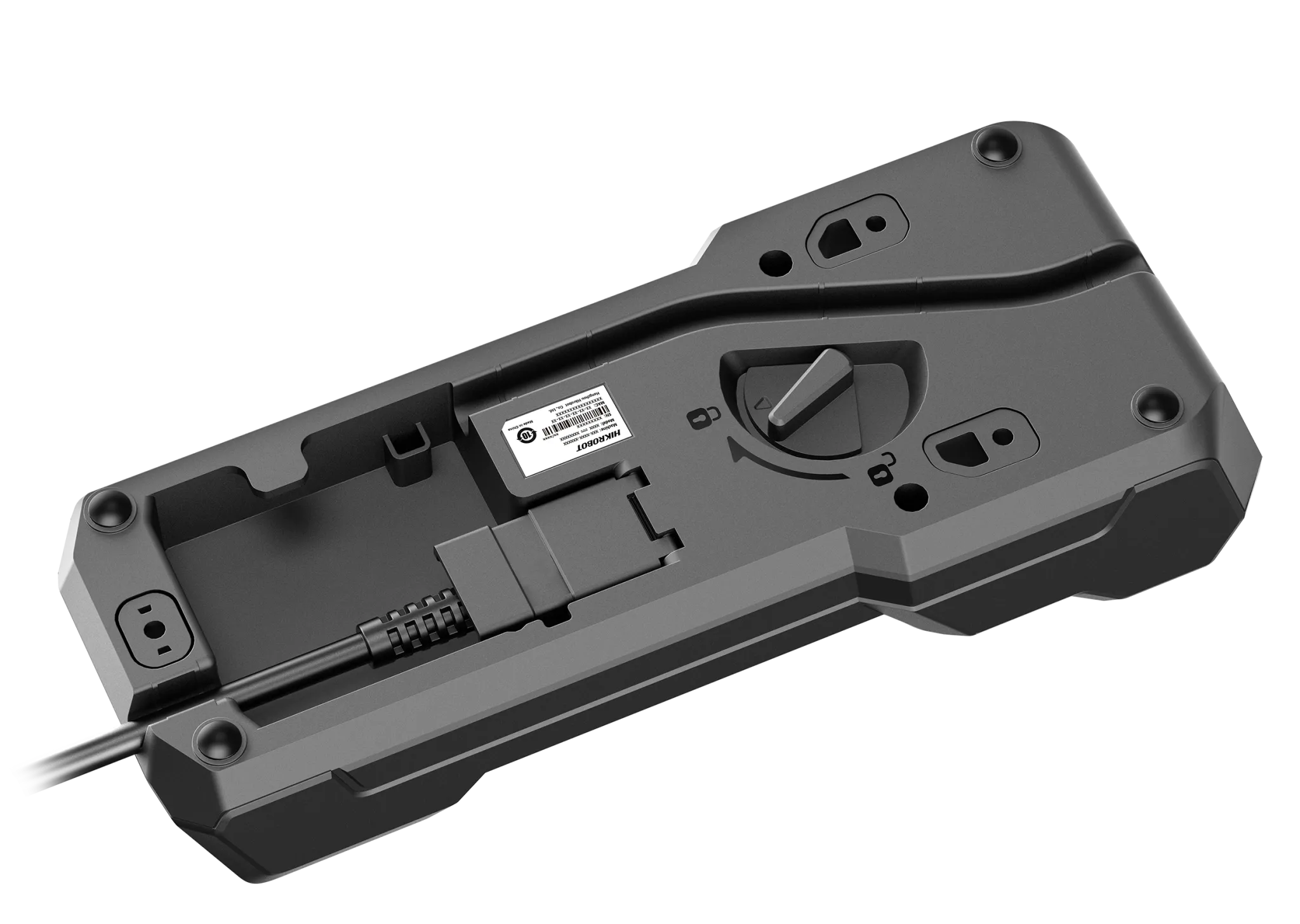

LAN Smart Base

Name: LAN Smart Base
Brand: HIKROBOT
SKU: MV-IDH9000B/SBASE/L

Adopts Bluetooth 5.0 wireless technology to provide stable connection with max. transmission distance of 100 meters in open areas, and supports mobile terminal connection via Bluetooth for convenient and efficient operations.

Send inquiry

Download datasheet (PDF)

Highlights

Bluetooth 5.0 provides a stable connection up to 100 m in open areas, with mobile-device support for convenient operation.
Wireless charging eliminates electrode wear and metal-swarf interference.
Multiple charging methods: smart base, Type-C connector, or PoE via smart base.
USB devices speak SmartSDK, USB, Serial, and Bluetooth; network devices additionally support TCP, FTP, PROFINET, EtherNet/IP, MELSEC/SLMP, Modbus, and UDP.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-IDH9000B/SBASE/L Category: Handheld Code Reader

LAN Smart Base is a handheld code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-IDH9000B/SBASE/L. Key data: communication mode Bluetooth BT 5.0, BLE, ingress protection IP65. Typical use is manual scanning in production, warehouse and service. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Wireless charging eliminates electrode wear and metal-swarf interference. Multiple charging methods: smart base, Type-C connector, or PoE via smart base. USB devices speak SmartSDK, USB, Serial, and Bluetooth; network devices additionally support TCP, FTP, PROFINET, EtherNet/IP, MELSEC/SLMP, Modbus, and UDP.

Product Highlights

Bluetooth 5.0 provides a stable connection up to 100 m in open areas, with mobile-device support for convenient operation. — Wireless charging eliminates electrode wear and metal-swarf interference. — Multiple charging methods: smart base, Type-C connector, or PoE via smart base. — USB devices speak SmartSDK, USB, Serial, and Bluetooth; network devices additionally support TCP, FTP, PROFINET, EtherNet/IP, MELSEC/SLMP, Modbus, and UDP.

Specifications

Product Model	MV-IDH9000B/SBASE/L
Type	LAN Smart Base
Communication Protocol	SmartSDK, TCP Client, FTP, TCP Server, Profinet, EthernetIP, Modbus, UDP, Serial, Bluetooth, MELSEC
Data Interface	Fast Ethernet (100 Mbit/s)2, RS-232, DC terminal
Power Supply	DC terminal: 12 VDC to 24 VDC PoE: 48 VDC
Current Consumption	DC terminal: 1.1 A (max.), 0.15 A (during standby) PoE: 0.35 A (max.), 0.1 A (during standby)
Dimension	257.9 mm × 99 mm × 67.6 mm (10.2" × 3.9" × 2.7")
Weight	Approx. 380 g (0.8 lb.)
Ingress Protection	IP65
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	5% RH to 95% RH (no condensation)
Communication Mode	Bluetooth BT 5.0, BLE
Wireless Range	100 m (open area)
Charging Time	6 h
