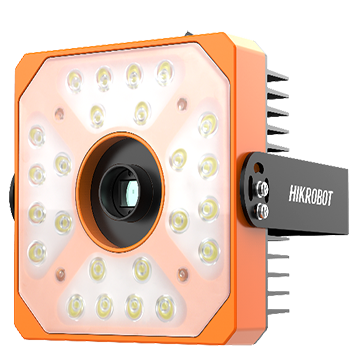

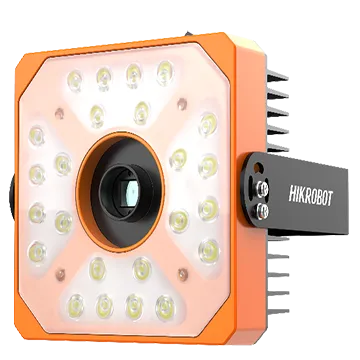

Logistic Code Reader, 12MP

Name: Logistic Code Reader, 12MP
Brand: HIKROBOT
SKU: MV-IDS012M-16C-C

Built-in code reading algorithm to read different types of one-dimensional and two-dimensional codes with good robustness.

Send inquiry

Download datasheet (PDF)

Highlights

Built-in algorithm reads a range of 1D and 2D code types.
Integrates image acquisition, processing, and output.
Integrated structural design for convenient installation.
Centralised light output with high luminous efficiency.
Long service life, stable performance, and excellent environmental compatibility.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-IDS012M-16C-C Category: Fixed Code Reader

Logistic Code Reader, 12MP is a fixed-mount code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-IDS012M-16C-C. Key data: max reading speed 60 codes/sec, resolution 3968 × 3000, data interface Gigabit Ethernet. Typical use is track-and-trace on production and logistics lines. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Integrates image acquisition, processing, and output. Integrated structural design for convenient installation. Centralised light output with high luminous efficiency. Long service life, stable performance, and excellent environmental compatibility.

Logistic Code Reader, 12MP (MV-IDS012M-16C-C) at a glance: 3968 × 3000 resolution, Mono sensor, 16 mm (0.6") lens, 700 mm (27.6") depth of field, up to 20 fps and Gigabit Ethernet interface. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Built-in algorithm reads a range of 1D and 2D code types. — Integrates image acquisition, processing, and output. — Integrated structural design for convenient installation. — Centralised light output with high luminous efficiency. — Long service life, stable performance, and excellent environmental compatibility.

Specifications

Product Model	MV-IDS012M-16C-C
Type	Logistic Code Reader, 12MP
Symbologies	1-dimensional codes: Code 128, Code 39, Code 93, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, and UPCE 2-dimensional codes: QR Code, Data Matrix
Max Frame Rate	20 fps
Max Reading Speed	60 codes/sec
Resolution	3968 × 3000
Exposure Time	48 μs to 0.5 sec
Gain	0 dB to 40 dB
Mono Color	Mono
Depth Of Field	700 mm (27.6")
Data Interface	Gigabit Ethernet
Digital I/O	6-pin green terminal provides power and I/O, including opto-isolated input × 1 (LineIn 0), opto-isolated output × 1 (LineOut 3), and configurable non-isolated input/output × 1 (Line In 2/LineOut 4). 3-pin green terminal provides RS-232 serial port.
Power Supply	24 VDC
Max Power Consumption	53 W @24 VDC
Focal Length	16 mm (0.6")
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% to 80% RH, non-condensing
Client Software	IDMVS
Certification	CE
Best Working Distance	1870 mm (73.6")
Field Of View Range	870 mm × 635 mm @10 mil
Operating System	32/64-bit Windows XP/7/10
Aperture	F2.4 to F16
Center Illuminance	11000 lux @1000 mm
Uniformity	0.56
Luminous Flux	5200 lm
Light Source Wavelength	420 nm to 730 nm
Color Temperature	6500 K
Pixel Format	Mono 8
Dimension Without Lens	164.2 mm × 149.6 mm × 159.1 mm (6.5" × 5.9" × 6.3")
Weight Without Lens	Approx. 990 g (2.2 lb.)
