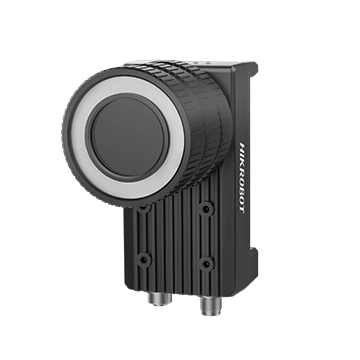

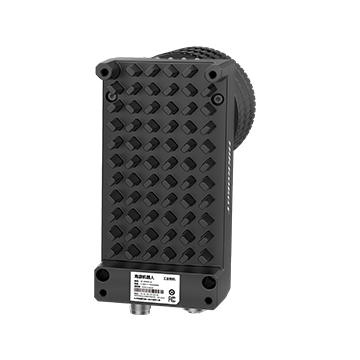

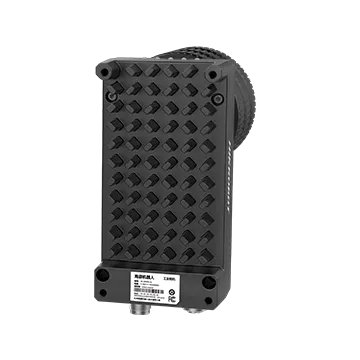

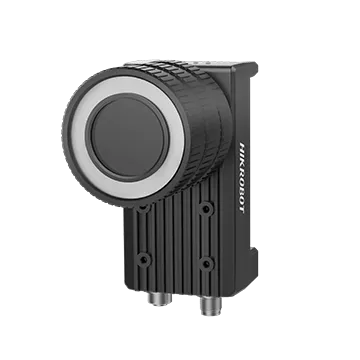

Logistic Code Reader, 12MP
Adopts 12 MP sensor to provide high-quality images.
- 12 MP sensor delivers high-quality images.
- Flexible installation with easy commissioning.
- Continuous high-speed reading of various code types.
- Reads codes with poor print quality.
- Gigabit Ethernet output for image transmission.
- Multi-device networking for large-scale deployments.
- Rated IP67 against dust and water.
Camera Solutions
Logistic Code Reader, 12MP is a fixed-mount code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ID6120PM-00C-NNG. Key data: max reading speed 84 codes/sec, resolution 4096 × 3072, data interface Gigabit Ethernet (1000 Mbit/s). Typical use is track-and-trace on production and logistics lines. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Compact Industrial Code Reader, 12mm focal length 1.3MP (MV-ID3013PM-12M-WBN)
- Compact Industrial Code Reader, 12mm Mechanical Autofocus len 1.6MP PRO Series (MV-ID3016PM-12M-WBN)
- Compact Industrial Code Reader, 14.8mm Mechanical Autofocus len 1.6MP PRO Series (MV-ID3016PM-15M-WBN)
- Compact Industrial Code Reader, 5MP (MV-ID3050PM)
- Compact Industrial Code Reader, 6mm focal length 1.3MP (MV-ID3013PM-06M-WBN)
- Compact Industrial Code Reader, 6mm focal length 1.6MP USB PRO Series (MV-ID2016M-06S-WBN-U)
- Compact Industrial Code Reader, 6mm focal length 1.6MP USB PRO Series (MV-ID2016M-06S-RBN-U)
- Compact Industrial Code Reader, 6mm focal length 1.6MP USB PRO Series (MV-ID2016M-06S-BBN-U)
Description
Flexible installation with easy commissioning. Continuous high-speed reading of various code types. Reads codes with poor print quality. Gigabit Ethernet output for image transmission. Multi-device networking for large-scale deployments. Rated IP67 against dust and water.
Product Highlights
12 MP sensor delivers high-quality images. — Flexible installation with easy commissioning. — Continuous high-speed reading of various code types. — Reads codes with poor print quality. — Gigabit Ethernet output for image transmission. — Multi-device networking for large-scale deployments. — Rated IP67 against dust and water.
Specifications
| Product Model | MV-ID6120PM-00C-NNG |
|---|---|
| Type | Logistic Code Reader, 12MP |
| Symbologies | 1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2D codes: QR Code, Data Matrix |
| Max Frame Rate | 28 fps |
| Max Reading Speed | 84 codes/sec |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 3.45 μm × 3.45 μm;3.2 μm × 3.2 μm |
| Sensor Size | 1.1";1" |
| Resolution | 4096 × 3072 |
| Exposure Time | 16 μs to 1 sec |
| Gain | 0 dB to 37 dB;0 dB to 40 dB |
| Mono Color | Mono |
| Communication Protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP |
| Data Interface | Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1. |
| Power Supply | 12 VDC to 24 VDC |
| Max Power Consumption | 17 W @ 24 VDC |
| Lens Mount | C-mount |
| Light Source | Not included |
| Dimension | 126 mm × 66 mm ×113.2 mm (5.0" × 2.6" × 4.5") |
| Weight | Approx. 750 g (1.7 lb.) |
| Ingress Protection | IP67 ( under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | IDMVS |
| Certification | CE, RoHS |
| Lens Cap | Included |
