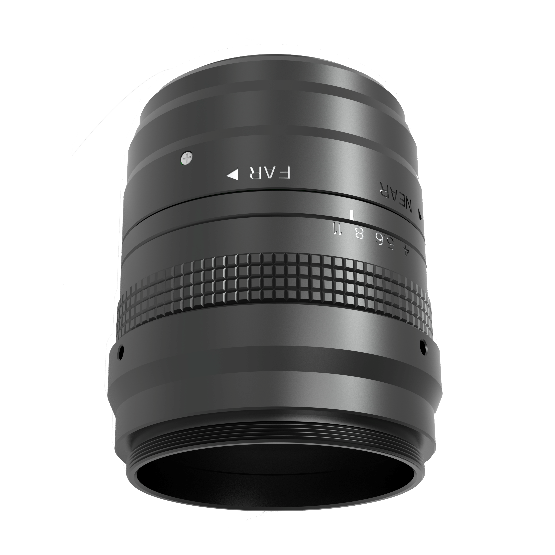

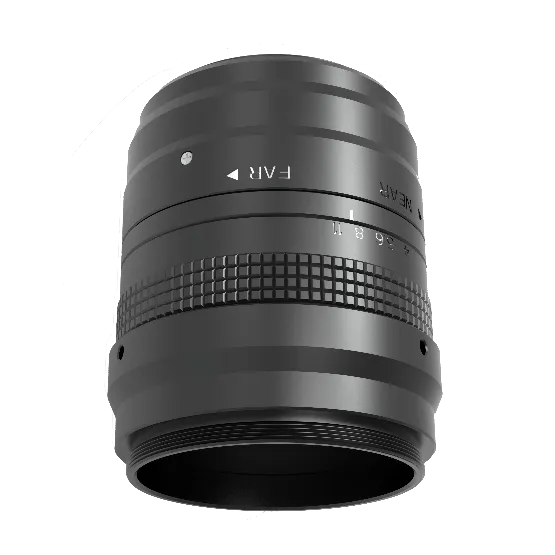

M42-Mount Lens, 28mm, F4.0, Image Size φ30mm, Recommended Magnification 0.05~0.3X
Provides excellent consistency of image clarity.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Low distortion. Maximum image size Ø30 mm; suits APS-C area-scan and 4K 7 µm line-scan cameras.
Product Highlights
Excellent image-clarity consistency. — Low distortion. — Maximum image size Ø30 mm; suits APS-C area-scan and 4K 7 µm line-scan cameras.
Specifications
| Product Model | MVL-AF2840M-M42 |
|---|---|
| Type | M42-Mount Lens, 28mm, F4.0, Image Size φ30mm, Recommended Magnification 0.05~0.3X |
| Focal Length | 28 mm |
| F Number | F4.0 to F11 |
| Image Size | Ø30 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M35 × 0.5 |
| Mount | M42 × P1 |
| Flange Back Length | 12 mm |
| Dimension | Ø48.1 mm × 54.6 to 62.6 mm (Ø1.9" × 2.2" to 2.5") |
| Weight | 162 g (0.4 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | 0.1% |
| Magnification Range | 0.3x to 0.05x |
| Working Distance Range | 103 mm to 595 mm |
