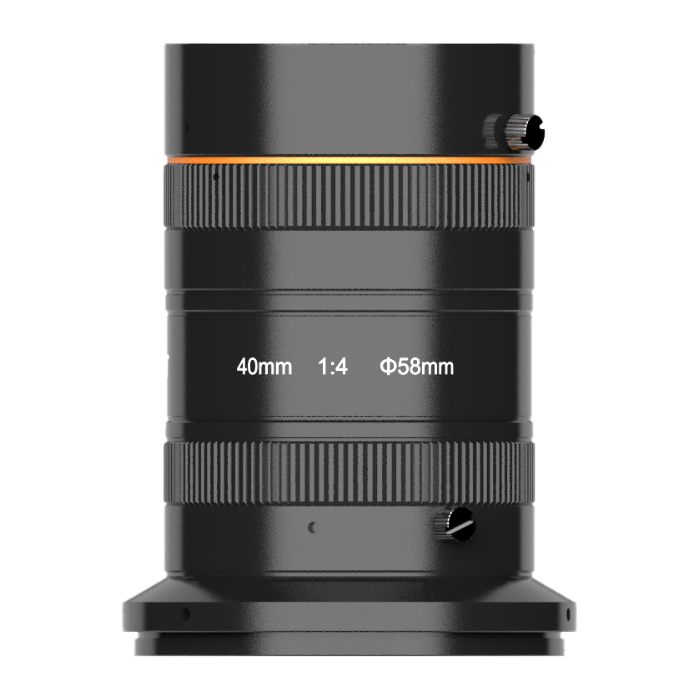

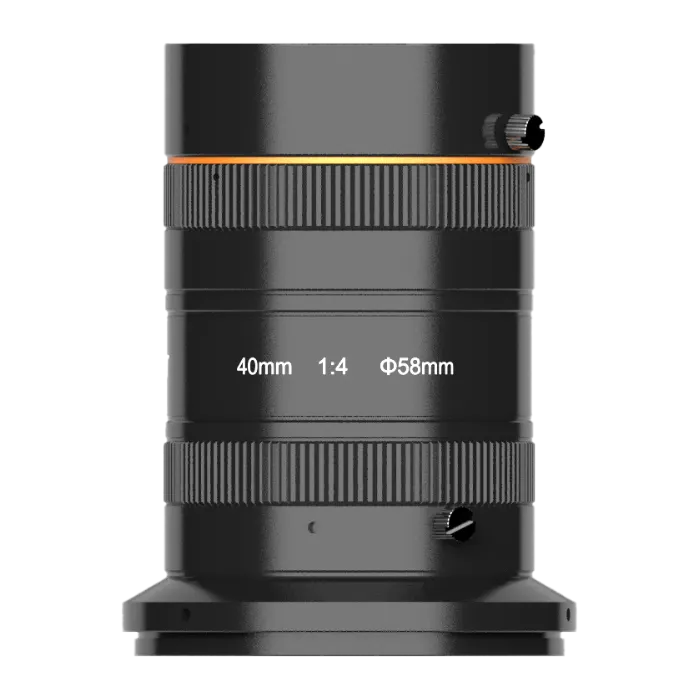

M72-Mount Lens, 40mm, F4.0, Image Size φ64mm, Recommended Magnification 0.05-0.21x
Adopts high-precision lens for 8k 7 μm line scan cameras.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Excellent image sharpness consistency and low distortion. Superior resolution at a maximum aperture of F4. Maximum image size Ø58 mm.
Product Highlights
High-precision lens designed for 8K 7 µm line-scan cameras. — Excellent image sharpness consistency and low distortion. — Superior resolution at a maximum aperture of F4. — Maximum image size Ø58 mm.
Specifications
| Product Model | MVL-LF4040M-01-M72 |
|---|---|
| Type | M72-Mount Lens, 40mm, F4.0, Image Size φ64mm, Recommended Magnification 0.05-0.21x |
| Focal Length | 40 mm |
| F Number | F4.0 to F22 |
| Image Size | Φ58 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M60 × P0.75 |
| Mount | M72 × P0.75 |
| Flange Back Length | 12 mm |
| Dimension | Φ76 mm × 97.9 mm (Φ3.0'' × 3.9") |
| Weight | 625 g (24.6 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | –0.42% |
| Magnification Range | 0.21 x to 0.001 x |
| Working Distance Range | 200 mm to inf mm (tolerance: ±5 mm) |
| Conjugate Distance Range | 310 mm to inf mm (tolerance: ±9 mm) |
