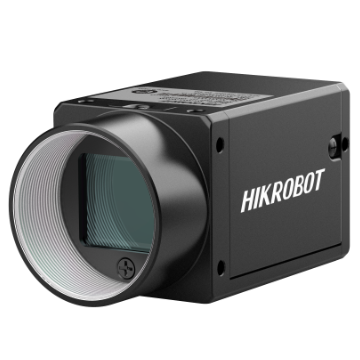

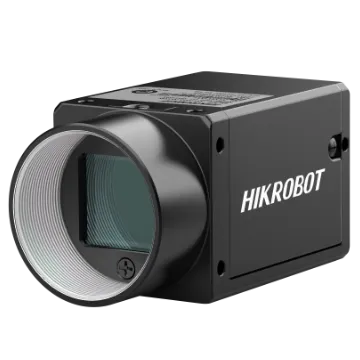

Area Scan Camera, 5MP, GMAX3405, 1-link CXP-12, C-mount, without fan, Mono
Resolution of 2448 × 2048, pixel size of 3.4 µm × 3.4 µm.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. Transmits data over a CXP-12 interface. Offers Off, Once, and Continuous exposure modes. Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Resolution of 2448 × 2048 with 3.4 µm × 3.4 µm pixels. — A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. — Transmits data over a CXP-12 interface. — Offers Off, Once, and Continuous exposure modes. — Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH050-90Y1M-NN |
|---|---|
| Type | Area Scan Camera, 5MP, GMAX3405, 1-link CXP-12, C-mount, without fan, Mono |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel GMAX3405 |
| Pixel Size | 3.4 μm × 3.4 μm |
| Sensor Size | 2/3" |
| Resolution | 2448 × 2048 |
| Max Frame Rate | 164 fps @ 2448 × 2048 Mono 8 |
| Dynamic Range | 59.7 dB |
| SNR | 39.3 dB |
| Gain | 0 dB to 6.1 dB |
| Exposure Time | 2 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |

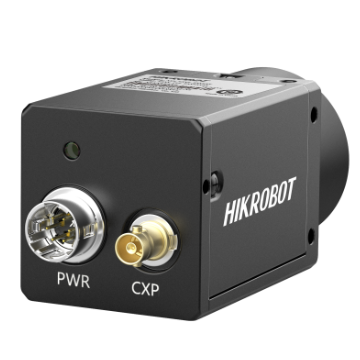

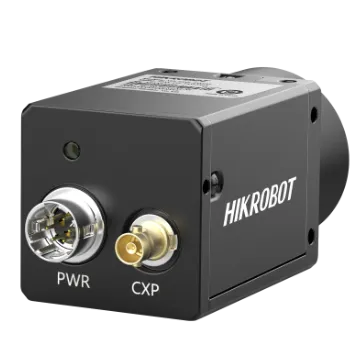

| Data Interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2) |
| Power Supply | 9 VDC to 24 VDC, supports PoCXP |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 90 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 3.3 W @ 12 VDC |
