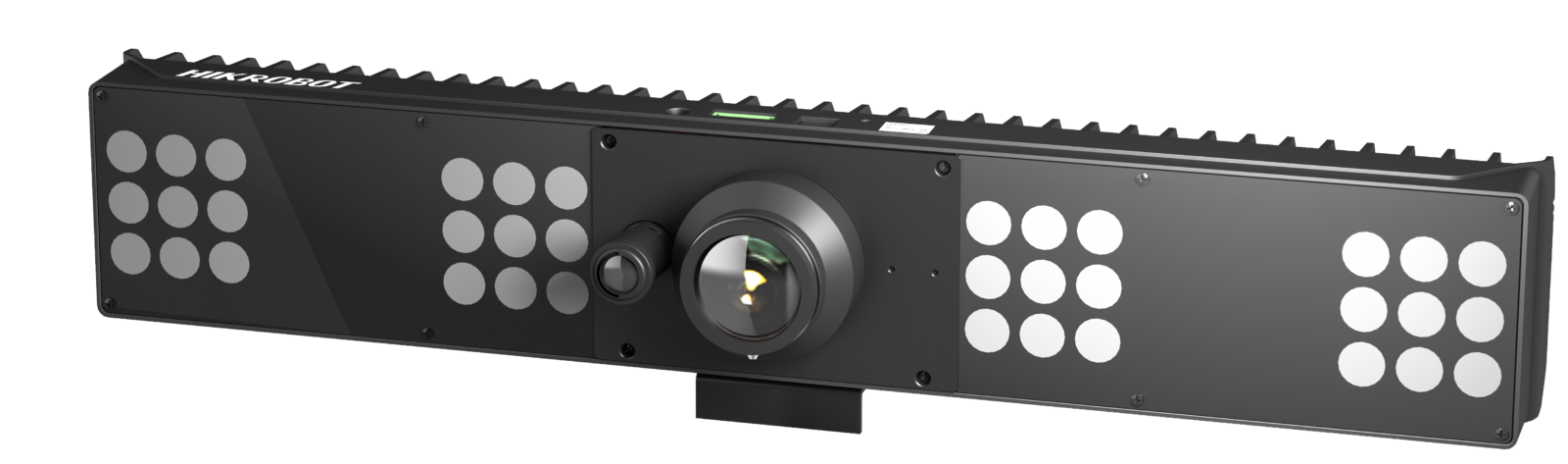

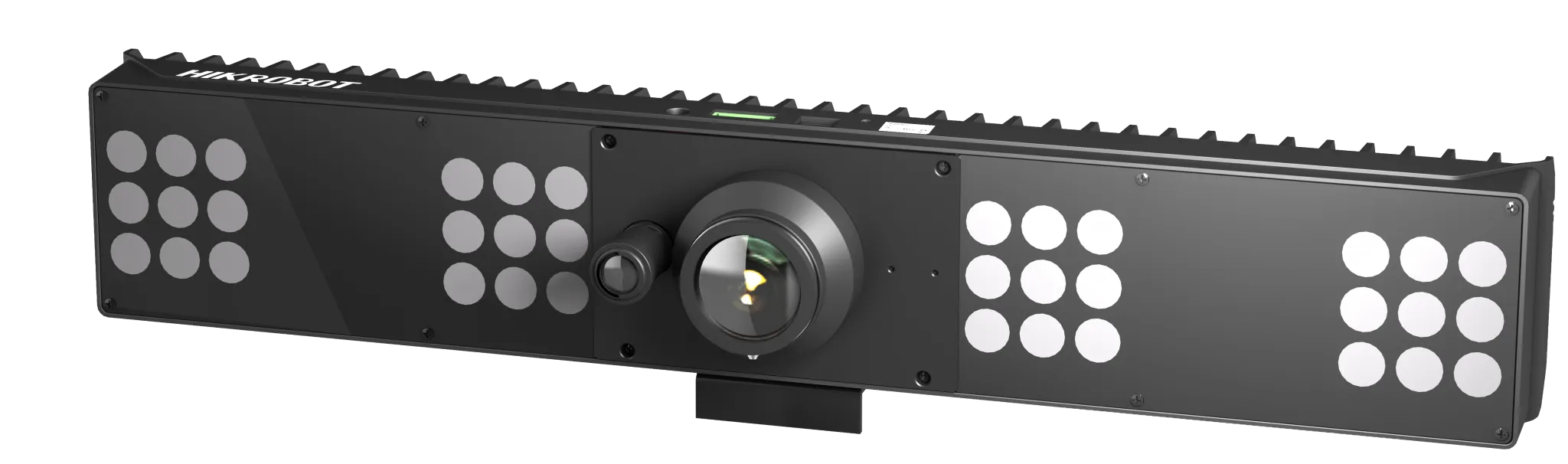

Logistic Code Reader, 8K

Name: Logistic Code Reader, 8K
Brand: HIKROBOT
SKU: MV-ID7080EM-35F-WHA V3.0

Built-in code reading algorithm to read different types of one-dimensional and two-dimensional codes with good robustness.

Send inquiry

Download datasheet (PDF)

Highlights

Built-in algorithm reads a range of 1D and 2D code types.
Image stitching for sequential combined-image output.
Image sensor captures high-quality images.
Multiple trigger and acquisition modes.
Multiple I/O interfaces for input and output signals.
RS-232 serial communication.
Integrated light source with 36 LED lamps.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-ID7080EM-35F-WHA V3.0 Category: Fixed Code Reader

Logistic Code Reader, 8K is a fixed-mount code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-ID7080EM-35F-WHA V3.0. Key data: resolution 7424 × 1, data interface Gigabit Ethernet (1000 Mbit/s). Typical use is track-and-trace on production and logistics lines. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Image stitching for sequential combined-image output. Image sensor captures high-quality images. Multiple trigger and acquisition modes. Multiple I/O interfaces for input and output signals. RS-232 serial communication. Integrated light source with 36 LED lamps.

Logistic Code Reader, 8K (MV-ID7080EM-35F-WHA V3.0) at a glance: 7424 × 1 resolution, Mono sensor, 35 mm lens, Gigabit Ethernet (1000 Mbit/s) interface, 608.3 mm × 127.6 mm × 167.1 mm (23.9" × 5.0" × 6.6") housing and weighs 5 kg (11 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Built-in algorithm reads a range of 1D and 2D code types. — Image stitching for sequential combined-image output. — Image sensor captures high-quality images. — Multiple trigger and acquisition modes. — Multiple I/O interfaces for input and output signals. — RS-232 serial communication. — Integrated light source with 36 LED lamps.

Specifications

Product Model	MV-ID7080EM-35F-WHA V3.0
Type	Logistic Code Reader, 8K
Symbologies	1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE 2-dimensional codes: QR Code, Data Matrix Stacked barcode: PDF417
Resolution	7424 × 1
Mono Color	Mono
Communication Protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP, UDP
Data Interface	Gigabit Ethernet (1000 Mbit/s)
Digital I/O	10-pin green terminal provides I/O, including differential input (LineIn 0) × 1, opto-isolated input (LineIn 1) × 1, opto-isolated output (LineOut 3/4) × 2, and RS-232 × 1.
Power Supply	48 VDC
Max Power Consumption	180 W @ 48 VDC
Focal Length	35 mm
Lens Mount	F-mount, flange back focal length 46.5 mm
Aiming System	Green LED
Dimension	608.3 mm × 127.6 mm × 167.1 mm (23.9" × 5.0" × 6.6")
Weight	Approx. 5 kg (11 lb.)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH, non-condensing
Client Software	IDMVS
Certification	CE, RoHS, KC
Max Line Frequency	15 kHz
Max Operating Speed Of Conveyer Belt	2.5 m/s
Best Working Distance	1000 mm
Field Of View Range	1000 mm @10 mil
Operating System	32/64-bit Windows XP/7/10
