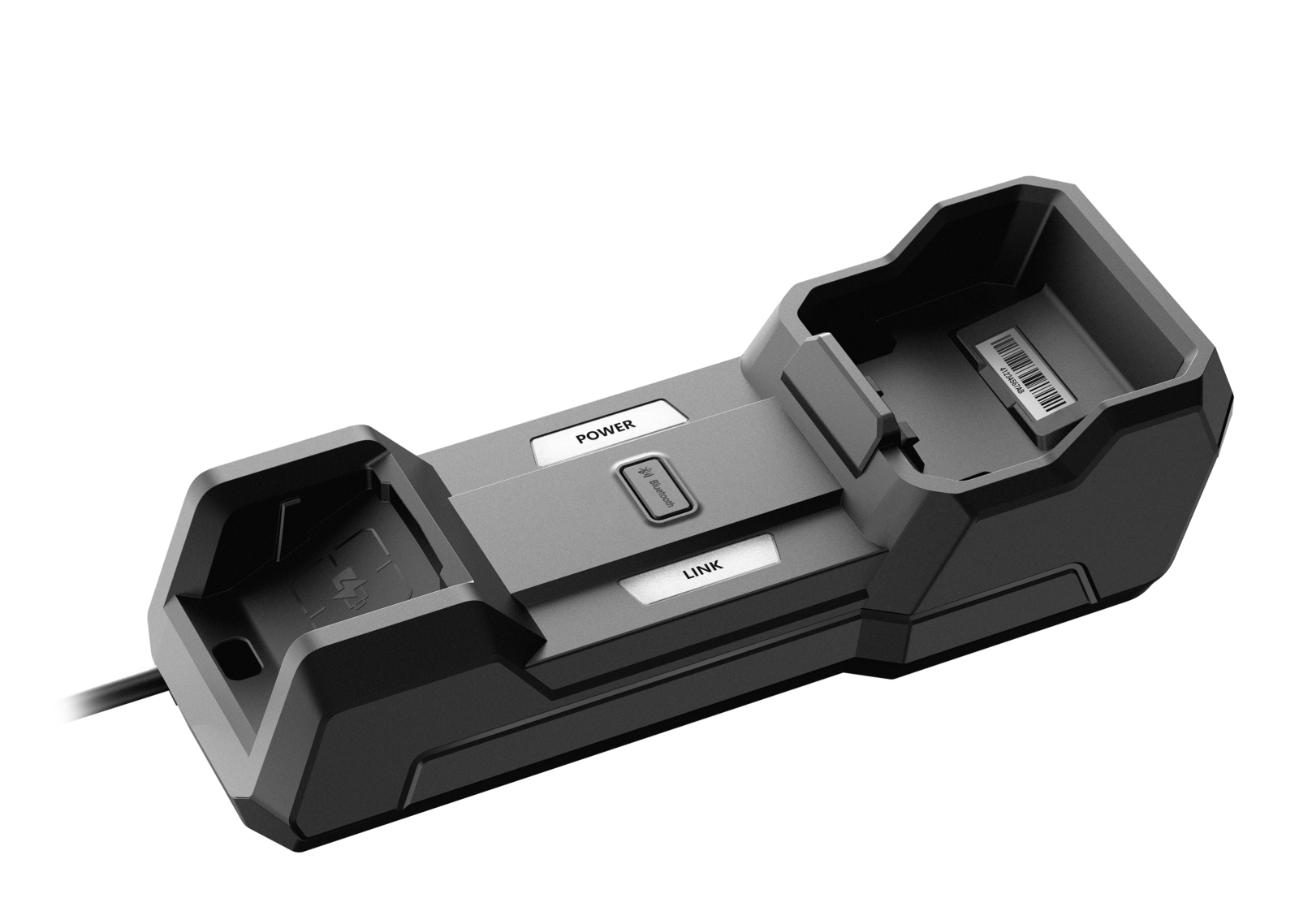

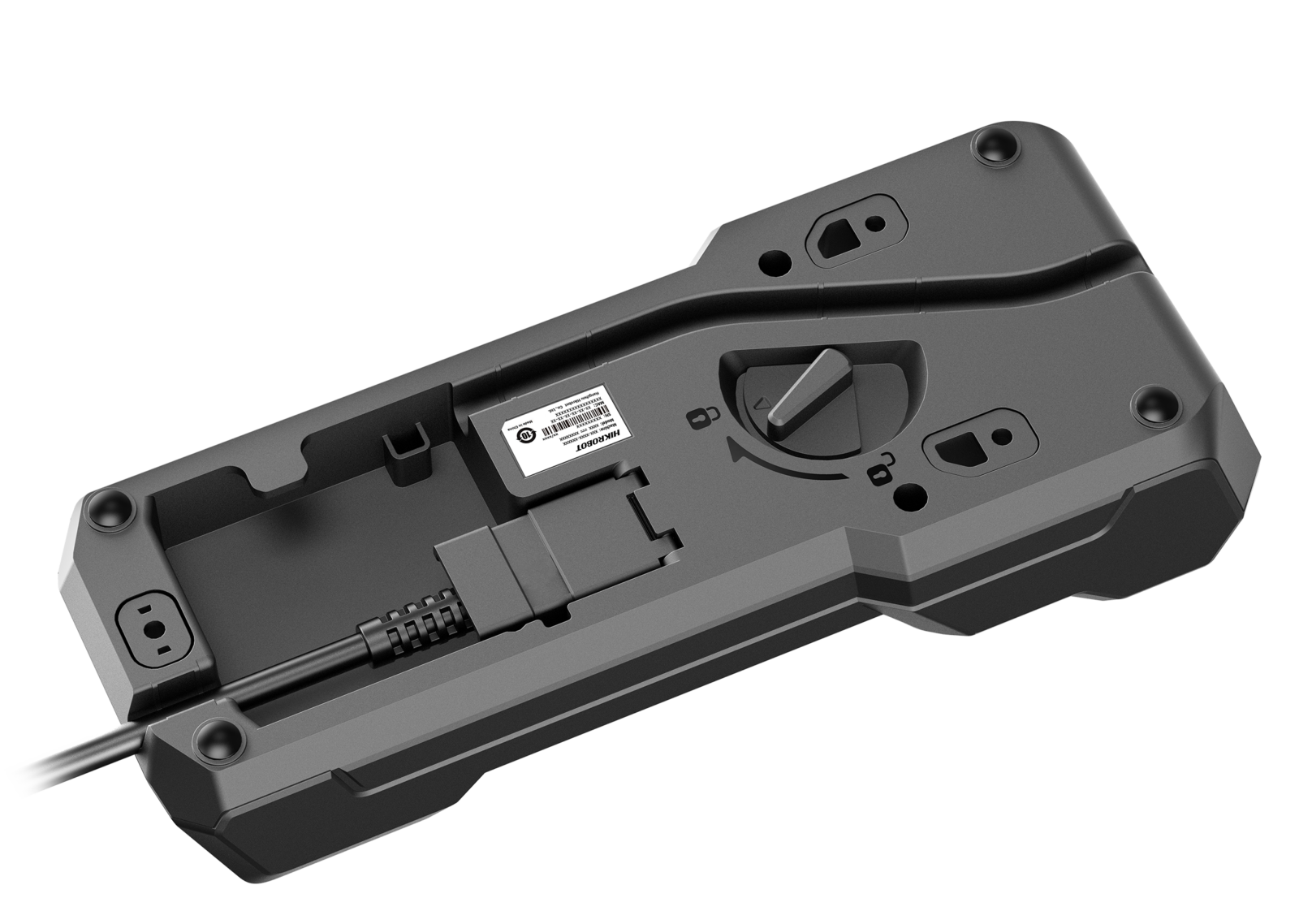

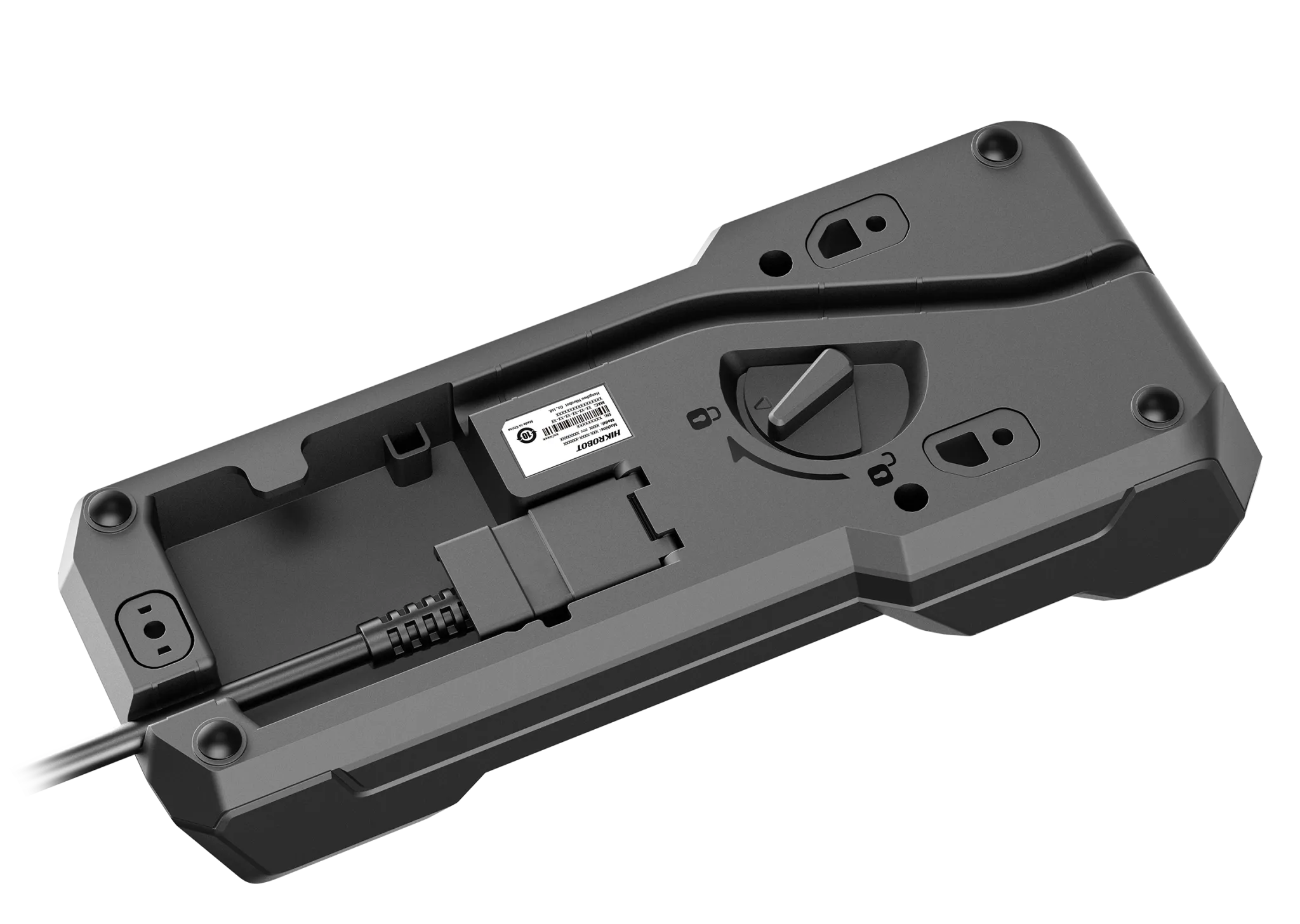

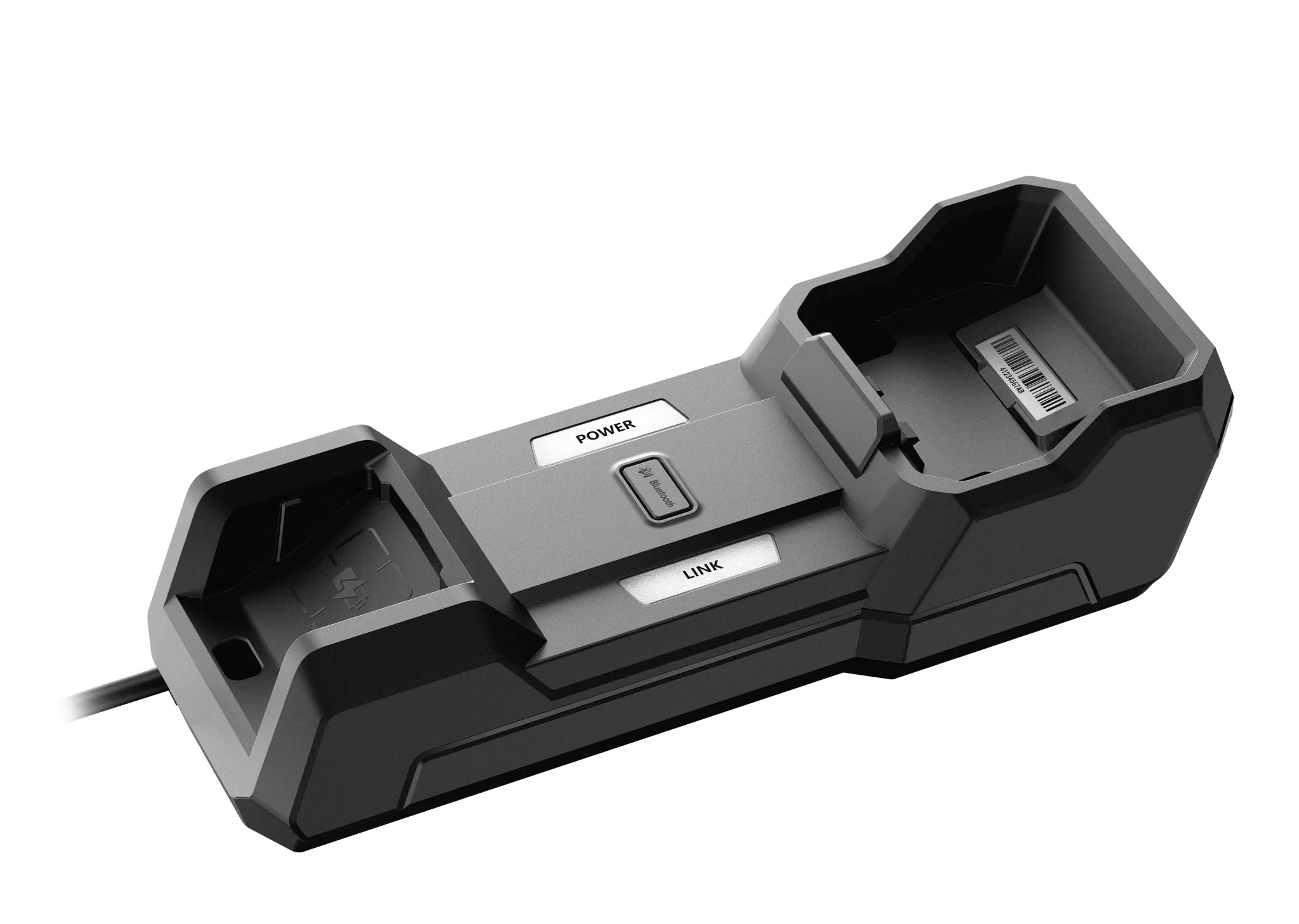

USB Smart Base
Adopts Bluetooth 5.0 wireless technology to provide stable connection with max. transmission distance of 100 meters in open areas, and supports mobile terminal connection via Bluetooth for convenient and efficient operations.
Camera Solutions
Beschreibung
Wireless charging eliminates electrode wear and metal-swarf interference. Multiple charging methods: smart base, Type-C connector, or PoE via smart base. USB devices speak SmartSDK, USB, Serial, and Bluetooth; network devices additionally support TCP, FTP, PROFINET, EtherNet/IP, MELSEC/SLMP, Modbus, and UDP.
Product Highlights
Bluetooth 5.0 provides a stable connection up to 100 m in open areas, with mobile-device support for convenient operation. — Wireless charging eliminates electrode wear and metal-swarf interference. — Multiple charging methods: smart base, Type-C connector, or PoE via smart base. — USB devices speak SmartSDK, USB, Serial, and Bluetooth; network devices additionally support TCP, FTP, PROFINET, EtherNet/IP, MELSEC/SLMP, Modbus, and UDP.
Specifications
| Product Model | MV-IDH9000B/SBASE/U |
|---|---|
| Type | USB Smart Base |
| Communication Protocol | SmartSDK, USB (HID/CDC), Bluetooth, Serial1 |
| Data Interface | USB 2.0, DC terminal |
| Power Supply | DC terminal: 12 VDC to 24 VDC |
| Current Consumption | 1.1 A (max.), 0.15 A (during standby) |
| Dimension | 257.9 mm × 99 mm × 67.6 mm (10.2" × 3.9" × 2.7") |
| Weight | Approx. 380 g (0.8 lb.) |
| Ingress Protection | IP65 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Communication Mode | Bluetooth BT 5.0, BLE |
| Wireless Range | 100 m (open area) |
| Charging Time | 6 h |
