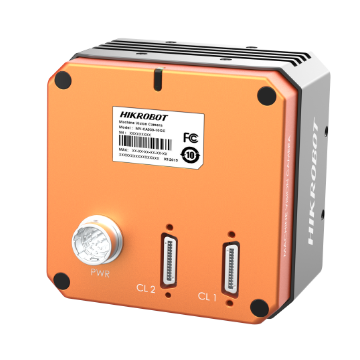

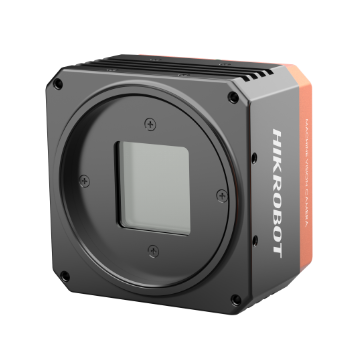

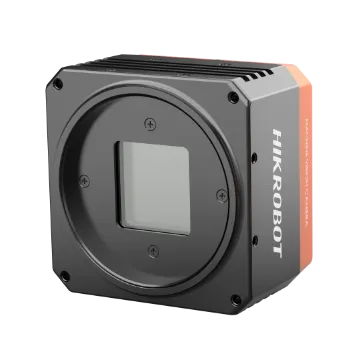

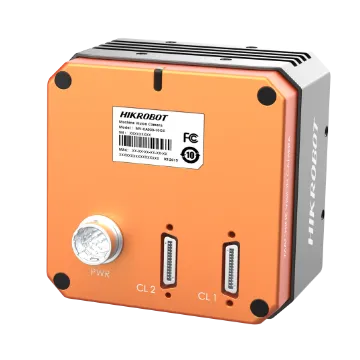

Area Scan Camera, 25MP, Camera Link, PYTHON25K, Mono, M58-mount, without fan
Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
- Multiple exposure and acquisition modes.
- A global-shutter CMOS sensor delivers wide dynamic range and high image quality.
- Camera Link Full and 80-bit configuration modes.
- Compact design with mounting holes for flexible mounting.
Camera Solutions
Area Scan Camera, 25MP, Camera Link, PYTHON25K, Mono, M58-mount, without fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH250-20CM-M58S-NN. Key data: resolution 5120 × 5120, sensor type CMOS, global shutter, max frame rate 31.3 fps @ 5120 × 5120, data interface Camera Link with SDR interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 25MP, PYTHON25k, 4-link CXP-6, Mono, M58-mount, fanless (MV-CH250-20XM-M58S-NN)
- Area Scan Camera, 25MP, 10GigE, PYTHON25K, Color, M58-mount (MV-CH250-25TC-M58S-NF)
- Area Scan Camera, 25MP, 10GigE, PYTHON25K, Mono, F-mount (MV-CH250-25TM-F-NF)
- Area Scan Camera, 25MP, 10GigE, PYTHON25K, Mono, M58-mount (MV-CH250-25TM-M58S-NF)
- Area Scan Camera, 25MP, 10GigE, Mono, M58-mount, with fan (MV-CH250-60TM-M58S-NF)
- Area Scan Camera, 25MP, USB3, Color (MV-CH250-60UC)
- Area Scan Camera, 25MP, USB3, Mono (MV-CH250-60UM)
- Area Scan Camera, 25MP, GigE, GMAX0505, Color, V4 (MV-CH250-90GC)
Description
A global-shutter CMOS sensor delivers wide dynamic range and high image quality. Camera Link Full and 80-bit configuration modes. Compact design with mounting holes for flexible mounting.
Product Highlights
Multiple exposure and acquisition modes. — A global-shutter CMOS sensor delivers wide dynamic range and high image quality. — Camera Link Full and 80-bit configuration modes. — Compact design with mounting holes for flexible mounting.
Specifications
| Product Model | MV-CH250-20CM-M58S-NN |
|---|---|
| Type | Area Scan Camera, 25MP, Camera Link, PYTHON25K, Mono, M58-mount, without fan |
| Sensor Type | CMOS, global shutter |
| Sensor Model | OnSemi PYTHON25K |
| Pixel Size | 4.5 μm × 4.5 μm |
| Sensor Size | 23 mm × 23 mm |
| Resolution | 5120 × 5120 |
| Max Frame Rate | 31.3 fps @ 5120 × 5120 |
| Dynamic Range | 59 dB |
| SNR | 41 dB |
| Gain | 0 dB to 32 dB |
| Exposure Time | 45 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8 |
| Binning | Not support |
| Decimation | Not support |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Camera Link with SDR interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1; Camera Link connector provides I/O (CC1/CC2/CC3/CC4). |
| Power Supply | 9 VDC to 24 VDC |
| Lens Mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 70 mm × 70 mm × 44.3 mm (2.8" × 2.8" × 1.7") |
| Weight | Approx. 380 g (0.8 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Power Consumption 2 | Typ. 9.4 W @ 24 VDC |
| Configuration Mode | Full, 80-bit |
| Tap Geometry | 8X_1Y, 10X_1Y |
| Tap Number | 8 Taps, 10 Taps |
| Pixel Clock | 60 MHz, 70 MHz, 85 MHz |
