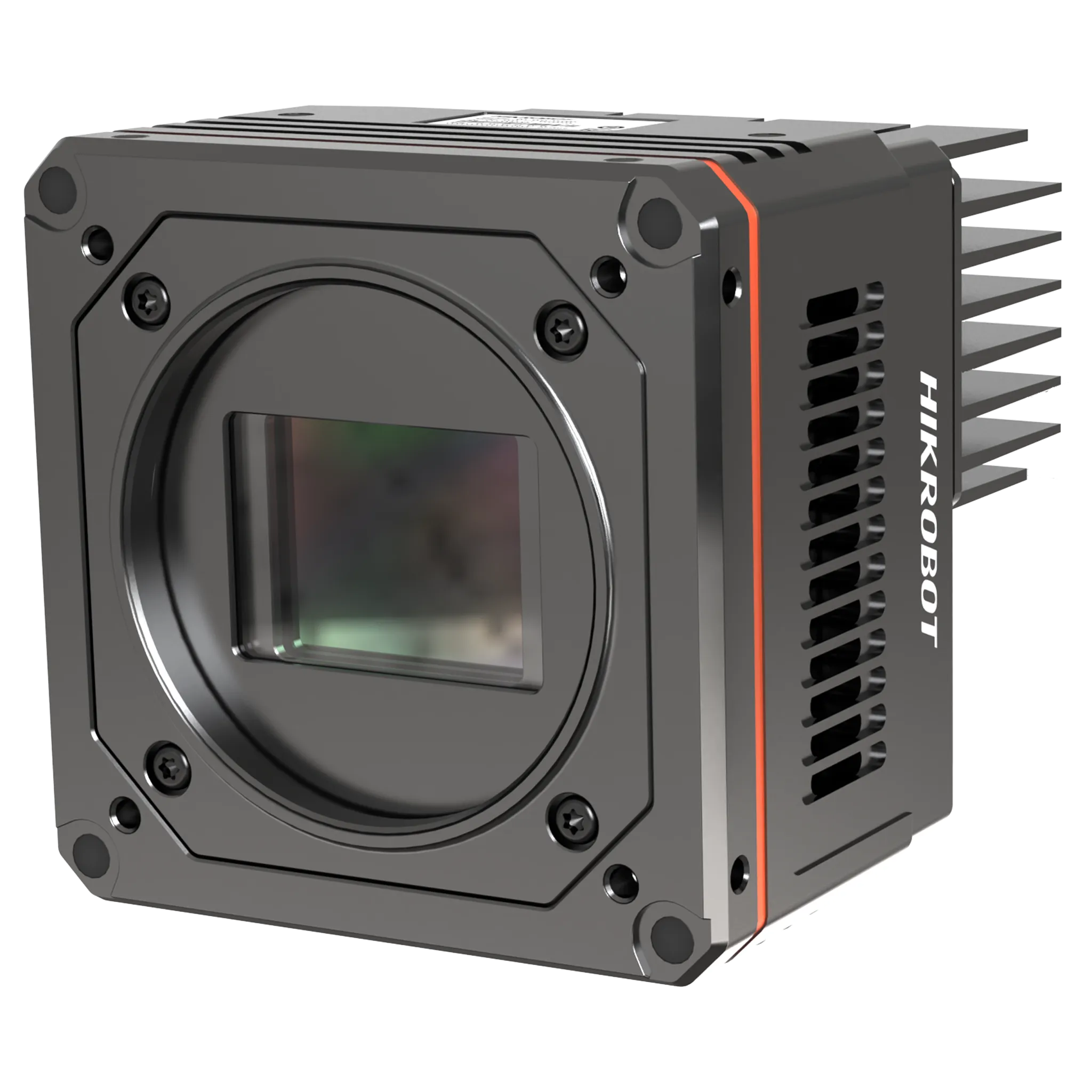

Area Scan Camera, 25MP, PYTHON25k, 4-link CXP-6, Mono, M58-mount, fanless

Name: Area Scan Camera, 25MP, PYTHON25k, 4-link CXP-6, Mono, M58-mount, fanless
Brand: HIKROBOT
SKU: MV-CH250-20XM-M58S-NN

Resolution of 5120 × 5120, and pixel size of 4.5 µm × 4.5 µm.

Send inquiry

Download datasheet (PDF)

Highlights

Resolution of 5120 × 5120 with 4.5 µm × 4.5 µm pixels.
Binning and image reversal supported.
A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality.
Transmits data over a CXP-6 interface.
Works with the CoaXPress protocol and the GenICam standard.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH250-20XM-M58S-NN Category: Area & Line Scan Cameras

Area Scan Camera, 25MP, PYTHON25k, 4-link CXP-6, Mono, M58-mount, fanless is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH250-20XM-M58S-NN. Key data: resolution 5120 × 5120, sensor type CMOS, global shutter, max frame rate 80 fps @ 5120 × 5120, data interface CoaXPress with DIN interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Binning and image reversal supported. A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. Transmits data over a CXP-6 interface. Works with the CoaXPress protocol and the GenICam standard.

Area Scan Camera, 25MP, PYTHON25k, 4-link CXP-6, Mono, M58-mount, fanless (MV-CH250-20XM-M58S-NN) at a glance: 5120 × 5120 resolution, OnSemi PYTHON25K sensor, 23 mm × 23 mm sensor format, 4.5 μm × 4.5 μm pixel size, up to 80 fps, Mono output, CoaXPress with DIN interface interface and M58*0.75, flange back length 11.48 mm lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Resolution of 5120 × 5120 with 4.5 µm × 4.5 µm pixels. — Binning and image reversal supported. — A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. — Transmits data over a CXP-6 interface. — Works with the CoaXPress protocol and the GenICam standard.

Specifications

Product Model	MV-CH250-20XM-M58S-NN
Type	Area Scan Camera, 25MP, PYTHON25k, 4-link CXP-6, Mono, M58-mount, fanless
Sensor Type	CMOS, global shutter
Sensor Model	OnSemi PYTHON25K
Pixel Size	4.5 μm × 4.5 μm
Sensor Size	23 mm × 23 mm
Resolution	5120 × 5120
Max Frame Rate	80 fps @ 5120 × 5120
Dynamic Range	58 dB
SNR	41 dB
Gain	0 dB to 15 dB
Exposure Time	33 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/12
Mono Color	Mono
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	CoaXPress with DIN interface

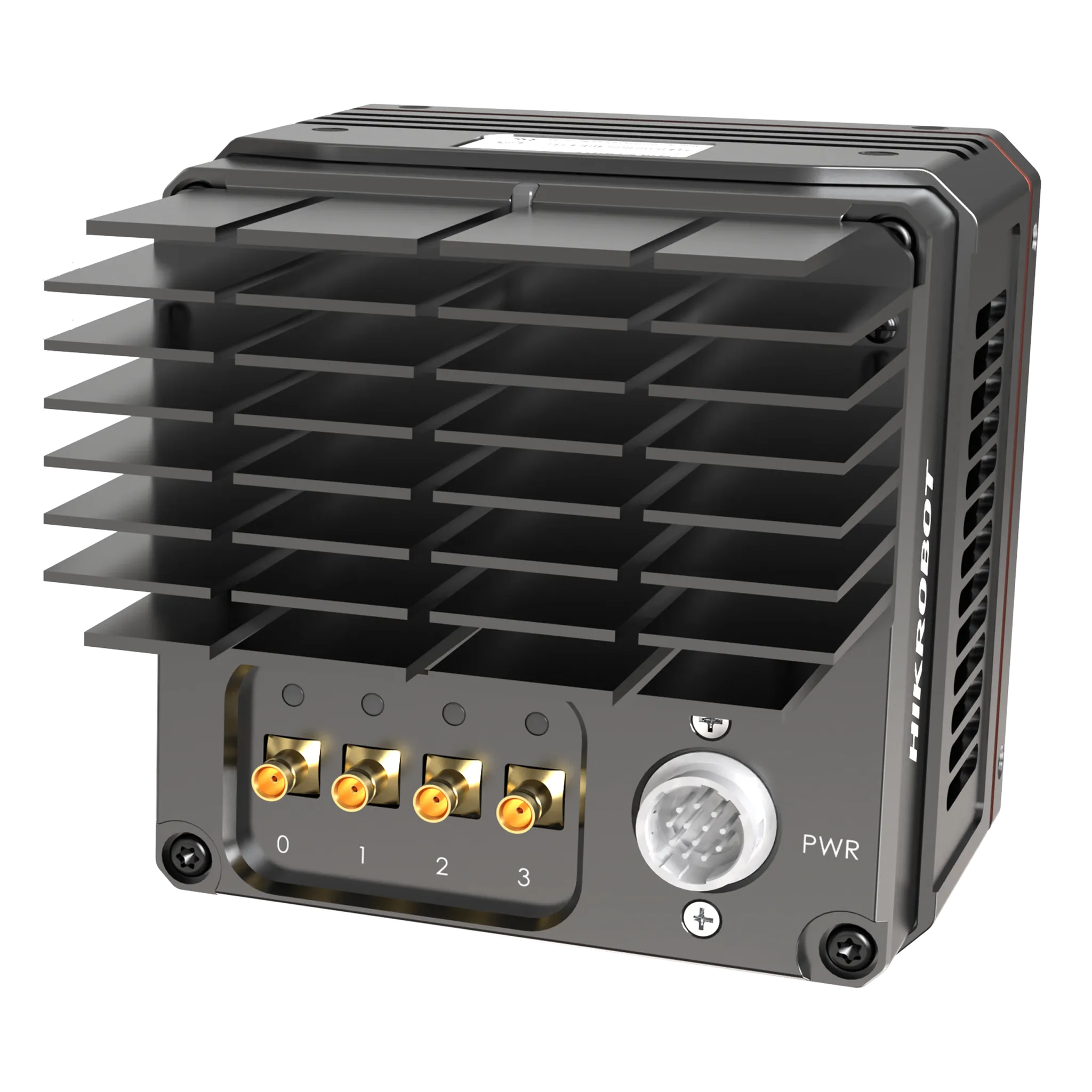

Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power Supply	9 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
Lens Mount	M58*0.75, flange back length 11.48 mm
Dimension	84 mm × 84 mm × 92.5 mm (3.3" × 3.3" × 3.6")
Weight	Approx. 730 g (1.6 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or frame grabber software meeting with CoaXPress Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11
Compatibility	CoaXPress, GenlCam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 10.8 W @ 24 VDC
